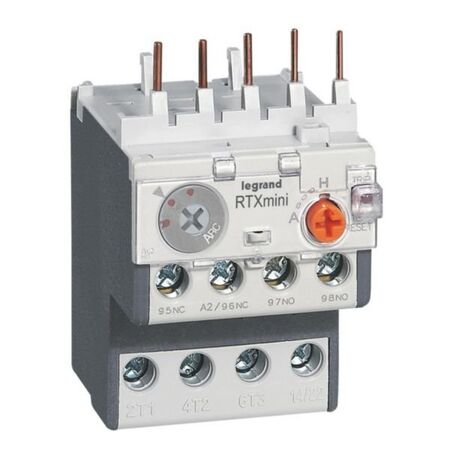

Thermal Overload Relay RTX3 Mini 40 | 0.25-0.4A Adjustable | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini 40 is designed for precise motor protection, featuring an adjustable current range of 0.25-0.4A and a maximum rated operation voltage of 690V. Ideal for industrial and tertiary applications, this relay ensures safety and compliance with Class 10A release standards, making it a reliable choice for motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini 40 | 0.25-0.4A Adjustable | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417082
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 0.25-0.4 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts normally closed: 1
- Number of auxiliary contacts normally open: 1
- Number of auxiliary contacts change-over: 0
- Mounting method: Direct attachment
- Type of electrical connection of main circuit: Screw connection
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 1.25mm² to 2mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct association to CTX3 mini contactor
- Adjustable current range from 0.25 to 0.4 A
- Max rated operation voltage of 690 V
- Mounting method: Direct attachment
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection systems to ensure safety and compliance.
Applications
- Protection of 3-phase motors in tertiary and industrial installations
- Motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 40 0.25-0.4A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
