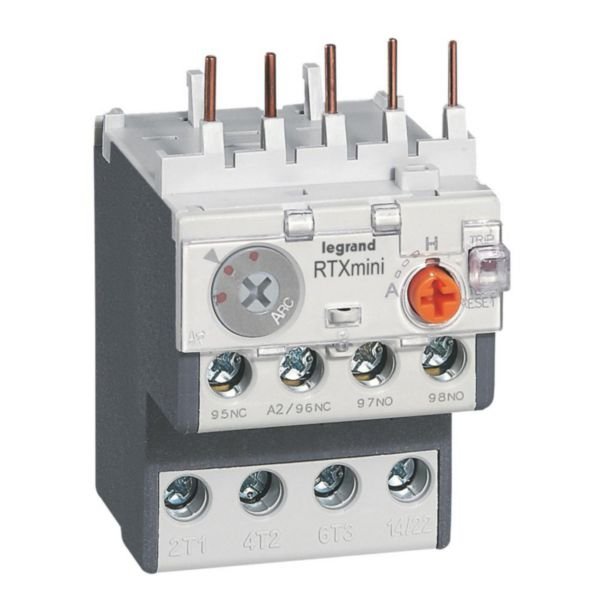

Thermal Overload Relay RTX3 Mini 40 | 0.4-0.63A Adjustable | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini 40 is designed for motor protection, featuring an adjustable current range of 0.4-0.63A and a maximum rated operation voltage of 690V. Ideal for 3-phase motors in industrial and tertiary applications, this relay ensures reliable performance with its Class 10A release and direct attachment mounting method, enhancing system efficiency and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini 40 | 0.4-0.63A Adjustable | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417083
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 0.4-0.63 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- Number of auxiliary contacts change-over: 0
- Release class: CLASS 10
- Electrical connection type: Screw connection
- Mounting method: Direct attachment
- Auxiliary contact rating: 0.75A / 240V AC
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 1.25mm² to 2mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct association to CTX3 mini contactor
- Adjustable current range from 0.4 to 0.63 A
- Max rated operation voltage 690 V
- Mounting method: Direct attachment
- Screw connection for main circuit
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician following Legrand installation instructions and safety standards.
Applications
- Protection of 3-phase motors up to 0.12kW / 415V in tertiary and industrial installations
- Motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protects motors from overload, reducing energy waste and equipment damage
- Enhances system efficiency and longevity, minimizing resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 40 0.4-0.63A Class 10A Differential is available for immediate purchase, ideal for motor protection in industrial and tertiary applications.
