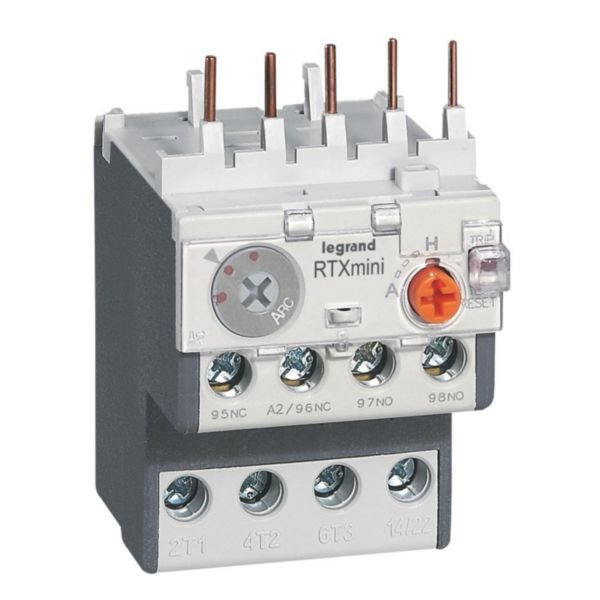

Thermal Overload Relay RTX3 Mini 40 | 1.0-1.6A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini 40 is designed for precise motor protection, featuring an adjustable current range of 1.0-1.6A and a maximum rated operation voltage of 690V. Ideal for industrial and tertiary applications, this relay includes a trip indicator and a reset button for enhanced functionality, ensuring reliable operation and extended motor lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini 40 | 1.0-1.6A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417085
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 1-1.6 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Number of auxiliary contacts (change-over): 0
- Release class: CLASS 10
- Electrical connection type: Screw connection
- Mounting method: Direct attachment
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Screw terminal capacity: Power 1.25mm² to 2mm², Auxiliary circuit 1mm²
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.15 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 1.25mm² to 2mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct association to CTX3 mini contactor
- Adjustable current range from 1 to 1.6 A
- Max rated operation voltage of 690 V
- Mounting method: Direct attachment
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician following Legrand installation instructions and local electrical codes.
Applications
- Protection of 3-phase motors up to 0.55kW at 415V
- Tertiary and industrial motor control and protection installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 40 1.0-1.6A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
