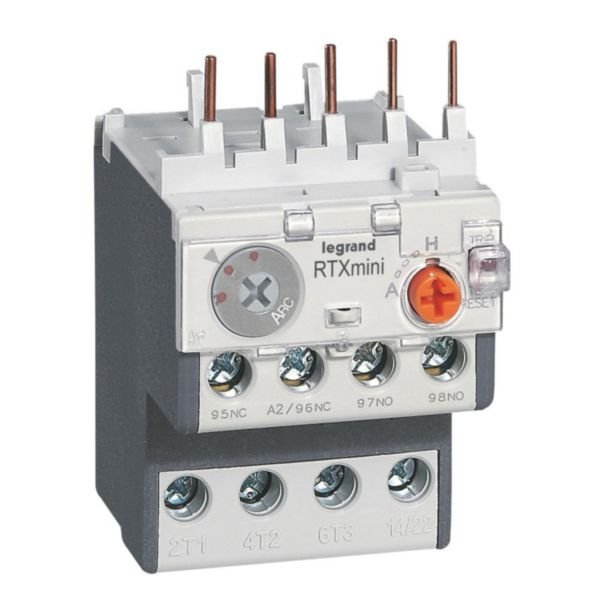

Thermal Overload Relay RTX3 Mini 40 | 9-13A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini 40 is designed for motor protection, featuring an adjustable current range of 9-13A and a Class 10A differential. Ideal for industrial automation and 3-phase motor applications, it ensures reliable operation with automatic or manual reset options, enhancing motor lifespan and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini 40 | 9-13A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417092
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 9-13 A
- Max rated operation voltage (Ue): 690 V
- Auxiliary contacts: 1 NO + 1 NC (0.75A / 240V AC)
- Mounting method: Direct attachment
- Electrical connection: Screw terminals (Power 1.25mm² to 2mm², Aux circuit 1mm²)
- Reset button selector: Automatic or manual reset
- Release class: CLASS 10
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.2 kg
Key Features
- Adjustable current range from 9 to 13 A
- 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact (0.75A / 240V AC)
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Protection of 3-phase motors up to 5.5kW / 415V in tertiary and industrial installations
- Motor control and protection in industrial automation systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protects motors from overload, reducing energy waste and equipment damage
- Enhances motor lifespan, reducing electronic waste
- Supports energy-efficient motor operation by preventing overheating
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 40 9-13A Class 10A Differential is available for immediate purchase. Ideal for industrial and tertiary motor protection applications.
