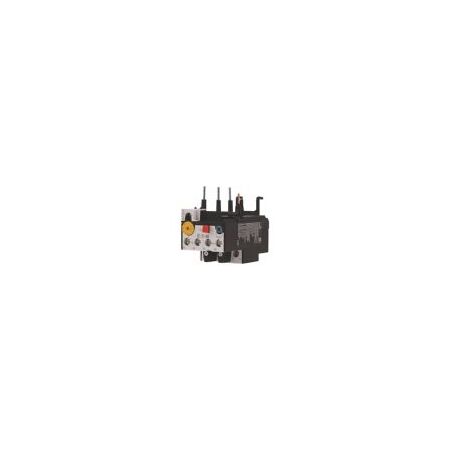

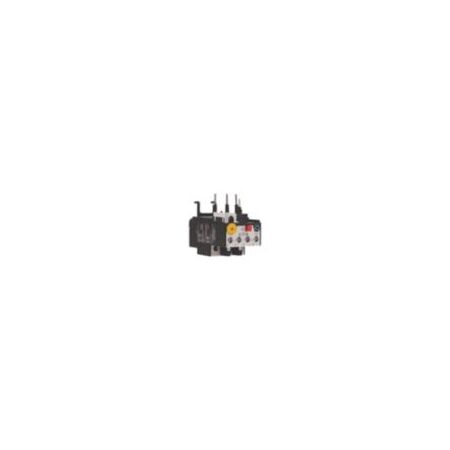

Thermal Overload Relay ZB32-24 16-24A Adjustable Current Eaton

BRAND: Eaton
SKU: Y7-278453
$114.20 List price: $152.30
+ −
30 Days Return Electricians Unlock Trade Access
Eaton Thermal Overload Relay ZB32-24 16-24A Adjustable Current features 690 V rating, IP20 protection. Ideal for AU motor control panels and switchboards.
Technical Specifications
  • Adjustable current range: 16 - 24 A
  • Number of contacts: 1 normally open, 1 normally closed
  • Degree of protection: IP20
  • Rated operational voltage (Ue) max: 690 V
  • Rated impulse withstand voltage (Uimp): 6000 V AC
  • Rated operational current (Ie) at AC-15, 220-240 V: 1.5 A
  • Rated operational current (Ie) at AC-15, 380-415 V: 0.9 A
  • Reset function: Push-button automatic
  • Mounting method: Direct mounting
  • Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm² for control circuit cables
  • Terminal capacity (solid): 1 x (0.75 - 4) mm² for control circuit cables
  • Tightening torque: 1.2 Nm for control circuit cables, 1.8 Nm for main cables
  • Ambient operating temperature: -25 °C to 55 °C
  • Short-circuit current rating: 100 kA (Fuse, SCCR UL/CSA)
  • Pollution degree: 3
  • Class: CLASS 10 A
  • Overvoltage category: III
  • Dimensions (H x L x W): 67mm x 96mm x 45mm
  • Weight: 0.145 kg
Key Features
  • Adjustable current range from 16 to 24 A
  • Phase-failure sensitivity according to IEC/EN 60947
  • Manual/automatic reset pushbutton
  • Test/off button for easy testing
  • Trip-free release mechanism
  • Finger and back-of-hand proof protection (EN 50274)
  • Direct mounting with IP20 degree of protection
  • Screw connection type for main circuit
  • Suitable for branch circuits (UL/CSA)
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
  • Industrial motor protection
  • Overload protection in electrical control panels
  • Direct mounting in motor control circuits
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing reliable overload protection
  • Supports longer equipment life and reduces electronic waste
Warranty Information

Standard Eaton warranty applies; typically 1-3 years depending on region and application. Refer to Eaton warranty policy for details.

Available Now

The Eaton Moeller ZB32 Thermal Overload Relay is available for immediate purchase, ideal for industrial motor protection and electrical control panel applications.
