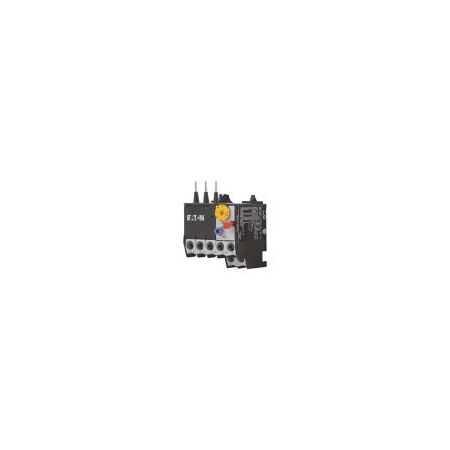

Thermal Overload Relay ZE-1.0 | 0.6-1 A Adjustable Current | IP20 Protection | 690 V by Eaton
Thermal overload relay ZE-1.0 with an adjustable current range of 0.6 to 1 A and IP20 protection—ideal for industrial motor protection and electrical control panels. Built for reliable overload protection, featuring a manual/automatic reset pushbutton and compliance with IEC/EN 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay ZE-1.0 | 0.6-1 A Adjustable Current | IP20 Protection | 690 V by Eaton
Brand: Eaton
SKU: Y7-14376
Alternatively Known As: Thermal Overload Relay ZE-1.0, Motor Overload Relay, Motor Protection Relay, Eaton ZE Overload Relay
Technical Specifications
- Rated current range: 0.6 - 1 A
- Number of contacts: 1 normally open, 1 normally closed
- Rated operational voltage (Ue): up to 690 V
- Rated operational current (Ie) at AC-15, 220-240 V: 1.5 A
- Rated operational current (Ie) at AC-15, 380-415 V: 0.7 A
- Rated operational current (Ie) at DC-13, 110-230 V: 0.2 - 0.4 A
- Reset function: Automatic push-button
- Mounting method: Direct attachment
- Degree of protection: IP20
- Overvoltage category: III
- Short-circuit current rating: 5 kA
- Terminal capacity: 0.5 - 2.5 mm² (solid and flexible cables)
- Pollution degree: 3
- Class: CLASS 10 A
- Ambient operating temperature: -25 °C to 50 °C
- Dimensions (H x L x W): 65mm x 52mm x 45mm
- Weight: 0.075 kg
Key Features
- Adjustable current range from 0.6 to 1 A
- Manual/automatic reset pushbutton
- Phase-failure sensitivity compliant with IEC/EN 60947
- Trip-free release mechanism
- Finger and back-of-hand protection against direct contact
- Screw connection for main circuit
- IP20 degree of protection
- Rated operational voltage up to 690 V
- Short-circuit current rating up to 5 kA
- Mechanical shock resistance of 10 g
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into control panels.
Applications
- Industrial motor protection
- Overload protection in electrical control panels
- Direct mounting on mini contactor relays
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer equipment lifespan reducing electronic waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller ZE series thermal overload relay is available for immediate purchase, ideal for industrial motor protection and electrical control applications.
