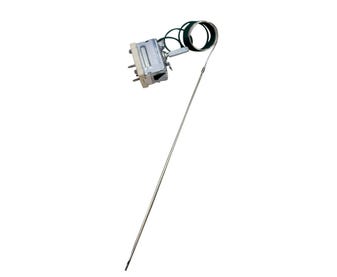

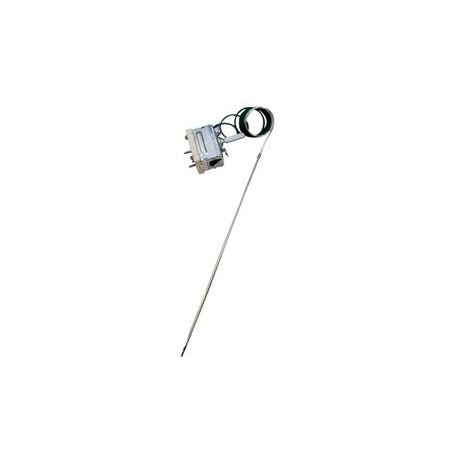

Thermostat 16A 240V | 50-270°C Range | SPST Design & 950mm Length by Cabac
This 16A thermostat operates at 240V with a temperature range of 50-270°C, making it ideal for various heating applications. Built for reliability and precision, it features a SPST design and a convenient 950mm length for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermostat 16A 240V | 50-270°C Range | SPST Design | 950mm Length by Brand
Brand: Cabac
SKU: EG55.17059.240
Alternatively Known As: Cooking Thermostat, Oven Thermostat, Temperature Control Switch, SPST Thermostat
Technical Specifications
- Voltage: 240V
- Current Rating: 16A
- Temperature Range: 50-270°C
- Switch Type: SPST (Single Pole Single Throw)
- Capillary Length: 950mm
- Sensor Dimensions: 219mm length x 3mm diameter
- Start Angle: 40 degrees
- Rotation: 270 degrees
- Function: Breaks circuit on temperature rise
- Dimensions (H x L x W): n/a mm x 950mm x n/a mm
- Weight: 0.1 kg
Key Features
- Temperature range from 50 to 270 degrees Celsius
- Single pole single throw (SPST) switch
- 16A current rating at 240V
- 950mm capillary length with 219 x 3mm sensor
- Start angle 40 degrees with 270 degrees rotation
- Breaks circuit on temperature rise
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Replacement part for ovens, stoves, and other cooking equipment
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient energy use by precise temperature control
- Reduces energy waste in cooking appliances
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Thermostat 16A 240V 50-270 DEG C SPST 950MM is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
