Thermostat 16A 240V | 50-320°C Range | SPST Design | 1470mm by Cabac

BRAND: CABAC
SKU: EF55.18064.020
$75.00 List price: $90.70
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

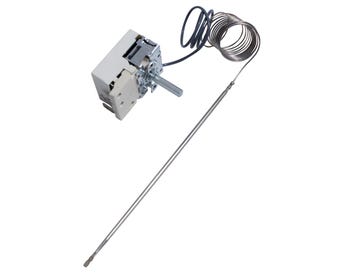

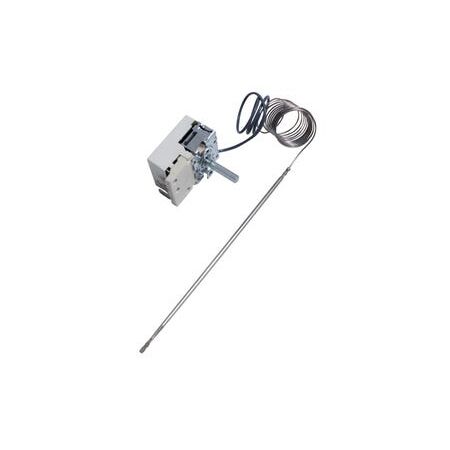

Thermostat with a 16A capacity and 50-320°C temperature range—ideal for heating control in various applications. Built for reliability, featuring a SPST design and a 1470mm length for versatile installation.

Product Name/Title: Thermostat 16A 240V | 50-320°C Range | SPST Design | 1470mm by Unbranded

Brand: Cabac

SKU: EF55.18064.020

Alternatively Known As: Cooking Thermostat, Oven Thermostat, Temperature Control Thermostat, SPST Thermostat

Technical Specifications
  • Switch Type: SPST (Single Pole Single Throw)
  • Voltage: 240V
  • Current Rating: 16A
  • Temperature Range: 50-320°C
  • Capillary Length: 1470mm
  • Sensor Dimensions: 160mm length x 3mm diameter
  • Start Angle: 45 degrees
  • Rotation Angle: 270 degrees
  • Calibrated knob compatible with P/N EF524.107A
  • Dimensions (H x L x W): n/a mm x 1470mm x n/a mm
  • Weight: 0.1 kg
Key Features
  • Temperature range from 50 to 320 degrees Celsius
  • Single pole single throw (SPST) switch
  • 16A 240V rating suitable for household appliances
  • 1470mm capillary length with 160 x 3mm sensor
  • Start angle 45 degrees and rotation 270 degrees
  • Calibrated knob compatible with P/N EF524.107A
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure safety and compliance with electrical standards.
Applications
  • Cooking appliances requiring temperature control
  • Replacement part for ovens, stoves, and other cooking equipment
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Helps maintain efficient energy use by precise temperature control
  • Supports appliance longevity by preventing overheating
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Thermostat 16A 240V 50-320 DEG C SPST 1470MM is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
