Thermostat 16A 240V | 60-200°C Range | SPDT Design | Reliable Control by Cabac

BRAND: CABAC
SKU: EF55.13234.010
$110.10 List price: $133.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message

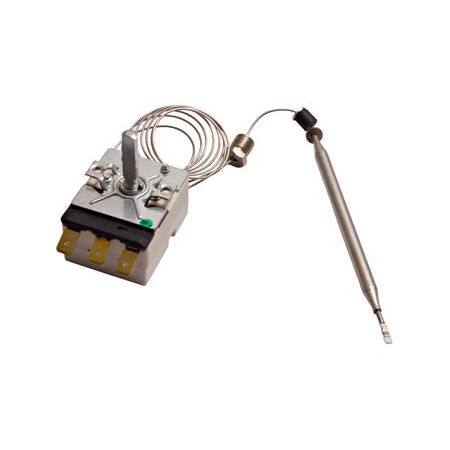

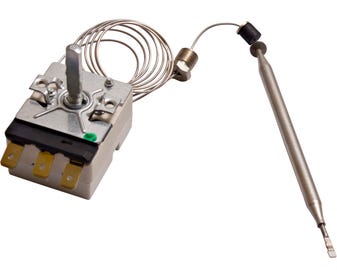

This 16A thermostat operates at 240V with a temperature range of 60-200°C—ideal for heating systems and industrial applications. Built for reliability, featuring a SPDT design for versatile control.

Product Name/Title: Thermostat 16A 240V | 60-200°C Range | SPDT Design by TSTAT

Brand: Cabac

SKU: EF55.13234.010

Alternatively Known As: Cooking thermostat, temperature controller, oven thermostat, SPDT thermostat

Technical Specifications
  • Voltage: 240V
  • Current rating: 16A (main contacts), 4A (changeover contacts)
  • Temperature range: 60-200°C
  • Sensor size: 77 x 6mm
  • Capillary length: 1430mm
  • Contact type: SPDT (Single Pole Double Throw)
  • Start angle: 90 degrees
  • Rotation angle: 270 degrees
  • Dimensions (H x L x W): 6mm x 1430mm x 77mm
  • Weight: 0.2 kg
Key Features
  • Temperature range: 60-200°C
  • Single pole double throw (SPDT) changeover on temperature rise
  • 16A 240V main contacts, 4A 240V changeover contacts
  • 1430mm capillary with 77 x 6mm sensor
  • Calibrated knob compatible with EF524.106A
  • Start angle 90 degrees, rotation 270 degrees
  • Gland nuts on capillary for secure installation
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and safety.
Applications
  • Cooking appliances requiring temperature control
  • Replacement part for ovens, cooktops, and other kitchen equipment
Standards & Compliance
  • AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
  • Helps maintain precise temperature control to improve energy efficiency in cooking appliances
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cabac TSTAT 16A 240V 60-200 DEG C SPDT RC35 thermostat is available now for immediate purchase. Ideal for use in cooking appliances and kitchen equipment requiring precise temperature control.
