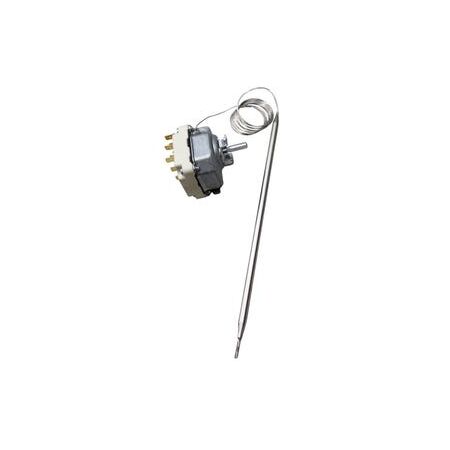

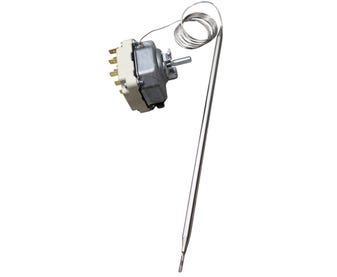

Thermostat CASC 8-34 | 10-36°C Range | TPDT | Energy Efficient by Cabac
Thermostat CASC 8-34 with a temperature range of 10-36°C and TPDT functionality—ideal for precise climate control in residential and commercial settings. Built for energy efficiency, ensuring optimal performance and comfort.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermostat CASC 8-34 | 10-36°C Range | TPDT | Energy Efficient by Matchmaster
Brand: Cabac
SKU: EF55.34202.040
Alternatively Known As: E.G.O. Thermostat CASC, Cascading Temperature Thermostat, TPDT Thermostat, Cooking Thermostat
Technical Specifications
- Temperature range: 8-34°C, 10-36°C, 12-38°C
- Contact type: TPDT (Triple Pole Double Throw)
- Capillary length: 880mm
- Sensor dimensions: 215mm length x 6mm diameter
- Start angle: 135 degrees
- Rotation angle: 270 degrees
- Electrical rating: 16A 240V change over contacts, 4A 240V change over contacts
- Dimensions (H x L x W): n/a mm x 880mm x n/a mm
- Weight: 0.3 kg
Key Features
- E.G.O. thermostat cascading temperature ranges: 8-34°C, 10-36°C, 12-38°C
- 3-pole thermostat with TPDT change over on temperature rise
- 16A 240V change over contacts and 4A 240V change over contacts
- 880mm capillary length with 215 x 6mm sensor
- Start angle 135 degrees and rotation 270 degrees
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure safety and compliance with electrical standards.
Applications
- Hot houses temperature control
- Air conditioning applications
- Cooking appliance temperature regulation
Standards & Compliance
- AS/NZS 60335 - Safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient temperature control reducing energy waste
- Supports sustainable operation of heating and cooling systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Thermostat CASC 8-34 10-36 12-38 DEG C TPDT is available for immediate purchase, ideal for hot houses, air conditioning, and cooking appliance temperature control.
