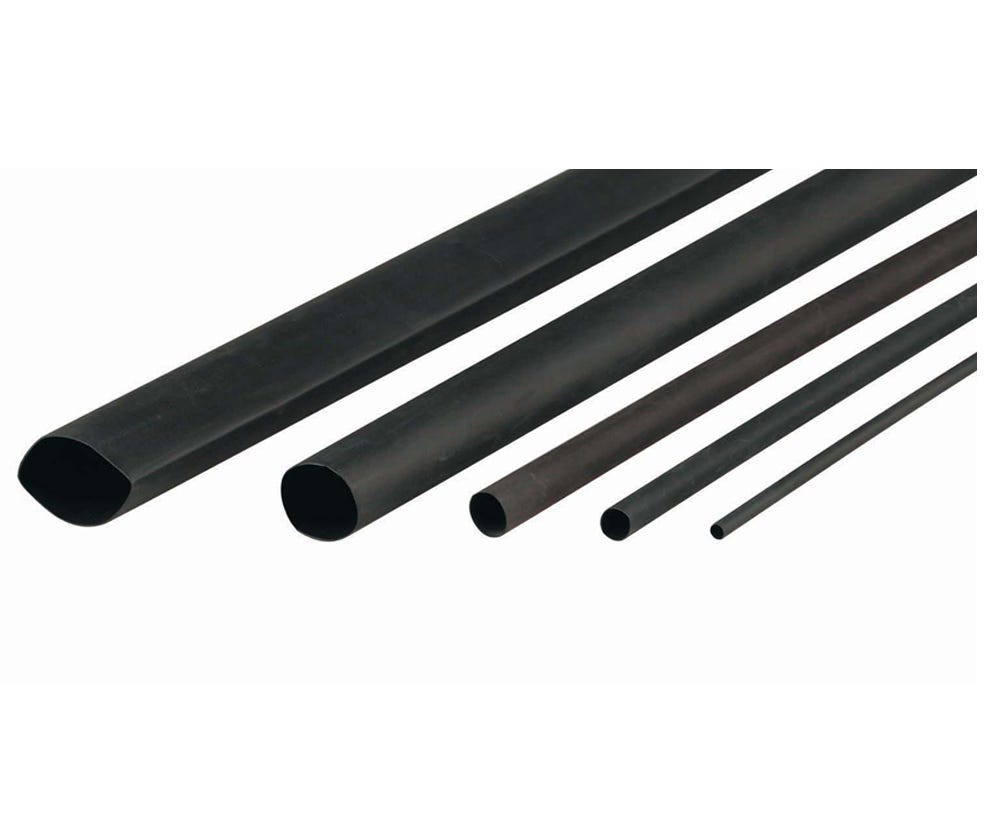

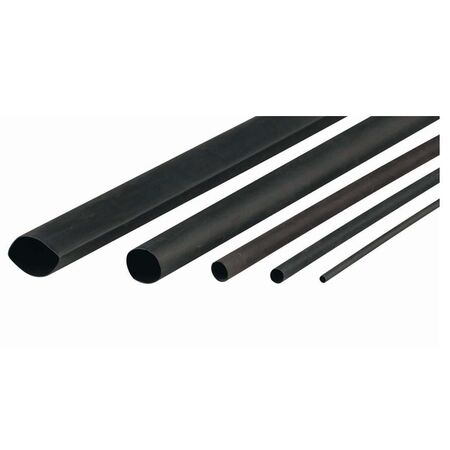

Thin Wall Heat Shrink 1.5mm 16mm Cut Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP1.5BK-16
$0.50 List price: $0.70
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 1.5mm supplied diameter cut to 16mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP1.5 Black Heat Shrink Sleeves, Thin Wall Heat Shrink Tubing, Polyolefin Heat Shrink Insulation

Technical Specifications
  • Material: Electron beam cross-linked polyolefin
  • Colour: Black
  • Pre-shrink diameter: 1.5mm nominal
  • Recovered diameter: Approximately 0.75mm
  • Shrink ratio: 2:1
  • Cut length: 16mm per piece
  • Quantity: 100 pieces
  • Voltage rating: 600V
  • Continuous operating temperature: -75°C to +135°C
  • Minimum shrinkage temperature: Above 105°C
  • Flammability: UL224 VW-1
  • Standards: UL224 VW-1, ASTM D2671
  • Glue lined: No
  • Dimensions (H x L x W): 1.6mm x 16mm x 1.6mm
  • Weight: 0.1 kg
Key Features
  • Thin wall construction for compact electrical insulation
  • Pre-cut 16mm sleeves supplied in a 100-piece pack
  • Flame retardant black polyolefin material
  • Provides insulation and mechanical protection for terminals, joints and lug barrels
  • Resistant to common fluids, solvents, impact and abrasion
  • UV stabilised black formulation
  • 2:1 shrink ratio for close-fitting coverage
  • Suitable for shrinking with a heat gun
Applications
  • Insulating crimp terminals and cable lugs
  • Protecting wire joints and connections
  • Covering lug barrels and terminal transitions
  • Electrical and electronic wiring assemblies
  • Cable identification and mechanical protection
Environmental Benefits
  • Polyolefin insulation can extend connection service life and reduce replacement waste
  • The durable, abrasion-resistant construction supports longer-lasting electrical assemblies
  • Black UV-stabilised material is suitable for applications exposed to light and environmental conditions
Warranty Information

CABAC goods are generally covered by a 12-month warranty from the date of purchase, subject to correct use and installation. Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
