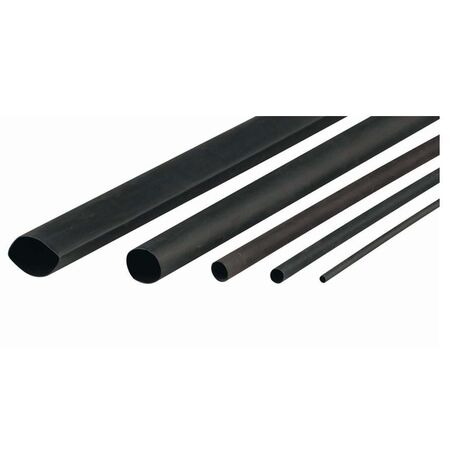

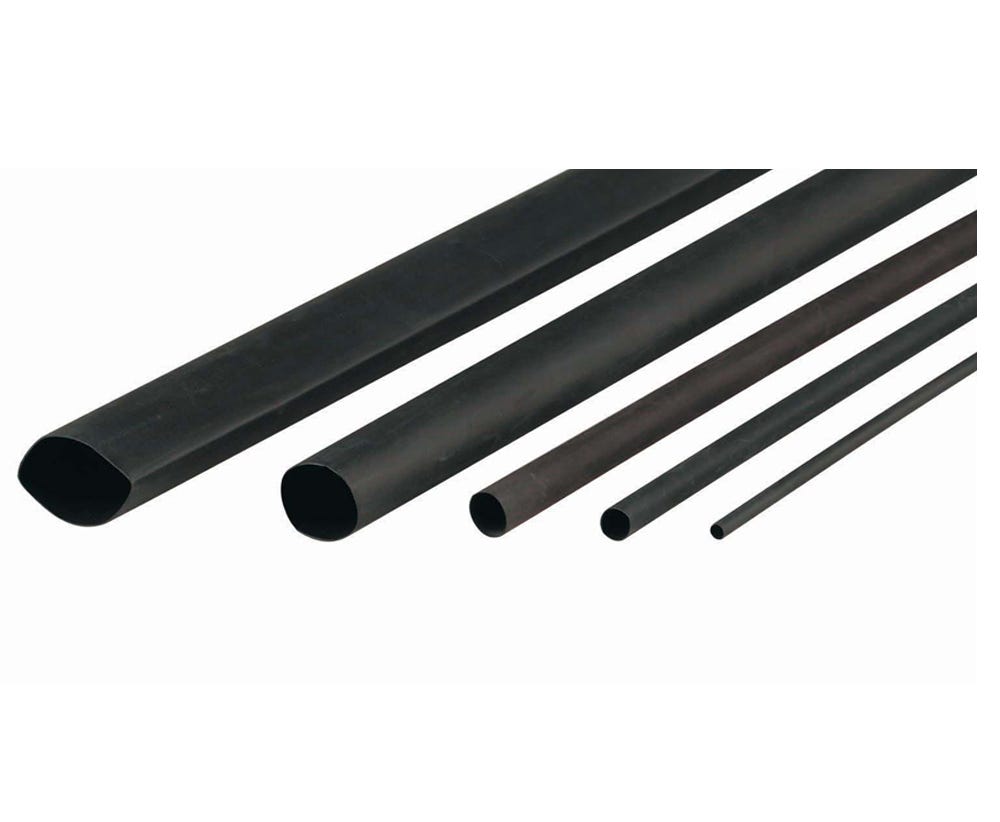

Thin Wall Heat Shrink 1.5mm 19mm Cut Black Pack of 100 Cabac
Cabac thin wall heat shrink 1.5mm supplied diameter cut to 19mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CABAC XLP1.5BK Cut Heat Shrink, Black Heat Shrink Sleeves, Thin Wall Heat Shrink Tubing
Technical Specifications
- Nominal Size: 1.5 mm class; 1.6 mm pre-shrink diameter
- Cut Length: 19 mm per sleeve
- Recovered Diameter: 0.8 mm
- Recovered Wall Thickness: 0.4 mm
- Shrink Ratio: 2:1
- Material: Chemically cross-linked, thermally stabilised flame-retardant polyolefin
- Colour: Black
- Operating Temperature: -75°C to +135°C
- Minimum Shrinkage Temperature: Above 100°C
- Voltage Rating: 600 V
- Breakdown Voltage: 25 kV/mm wall thickness
- Flammability: ASTM D2671; UL224 VW-1
- Pack Quantity: 100 sleeves
- Adhesive Lined: No
- Dimensions (H x L x W): 1.6mm x 19mm x 1.6mm
- Weight: 0.1 kg
Key Features
- Pre-cut 19 mm sleeves for consistent installation lengths
- Suitable for insulating terminals, cable joints and lug barrels
- 2:1 shrink ratio accommodates minor variations in component size
- Flame-retardant and UV-stabilised black polyolefin construction
- Resistant to common fluids, solvents, abrasion and impact
- Provides electrical insulation and mechanical protection
Applications
- Insulating crimp terminals and lug barrels
- Protecting cable joints and splices
- Electrical and electronic wiring repairs
- Cable identification and mechanical protection
- Automotive, appliance, control-panel and general electrical work
Standards & Compliance
- Use in electrical installations should follow the applicable requirements of AS/NZS 3000:2018, including correct selection, insulation and installation practices.
Environmental Benefits
- Durable cross-linked polyolefin construction can extend the service life of protected cable joints and reduce replacement waste
- UV and abrasion resistance support longer service life in suitable environments
- RoHS-compliant material formulation helps limit the use of certain restricted substances
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase, subject to the manufacturer's terms and excluding misuse, neglect and incorrect installation. Australian Consumer Law rights continue to apply.
Available Now
Available through CABAC and authorised Australian electrical distributors.
