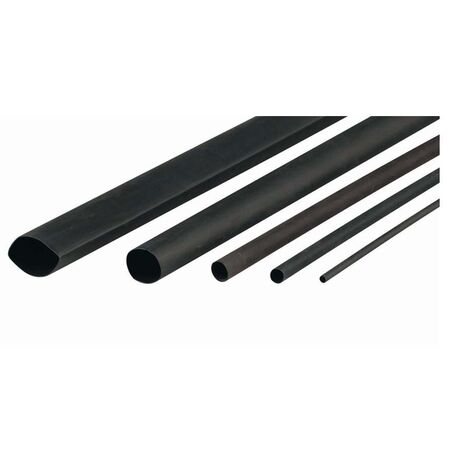

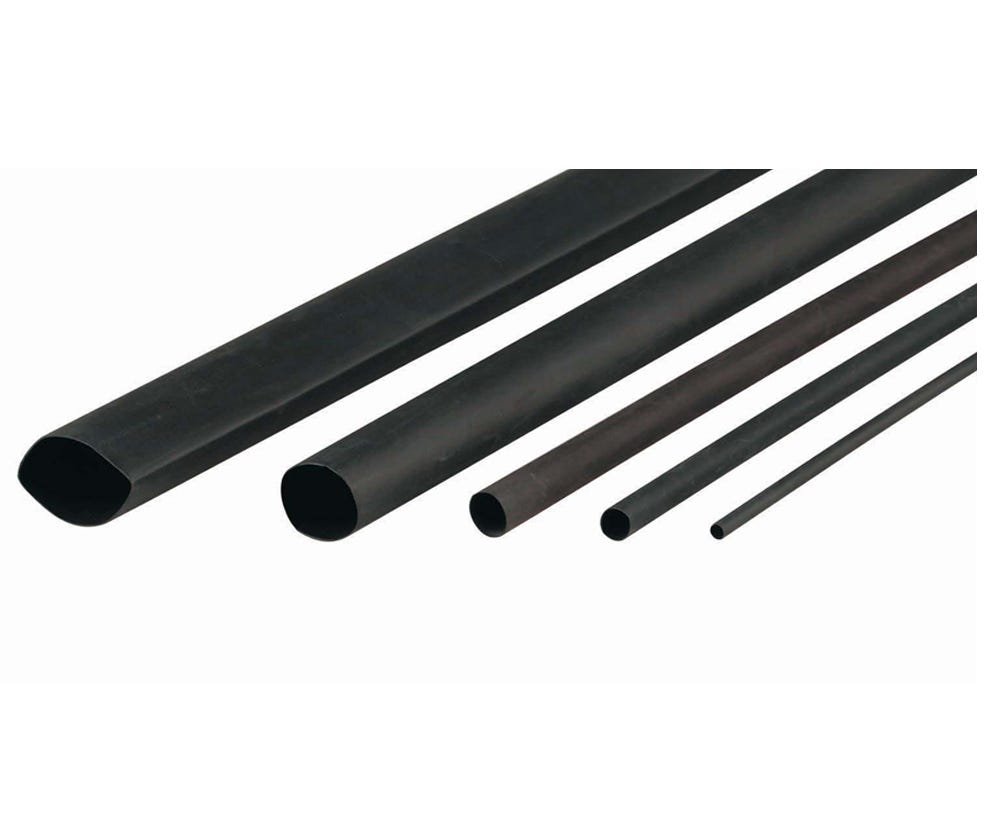

Thin Wall Heat Shrink 1.5mm 25mm Cut Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP1.5BK-25
$0.10 List price: $0.20
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 1.5mm supplied diameter cut to 25mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP1.5BK Pre-Cut Heat Shrink, Polyolefin Heat Shrink Sleeves, Electrical Heat Shrink Tubing

Technical Specifications
  • Material: Electron beam cross-linked polyolefin
  • Colour: Black
  • Supplied Diameter: 1.6mm nominal
  • Recovered Diameter: 0.8mm nominal
  • Recovered Wall Thickness: 0.4mm
  • Shrink Ratio: 2:1 nominal
  • Cut Length: 25mm per piece
  • Pack Quantity: 100 pieces
  • Minimum Shrink Temperature: 70°C
  • Operating Temperature: -55°C to +135°C
  • Dielectric Strength: Greater than 20kV/mm
  • Tensile Strength: 14MPa
  • Flammability: Passes UL 224 VW-1
  • Compliance: UL 224 VW-1, File E366157
  • Glue Lined: No
  • Dimensions (H x L x W): 1.6mm x 25mm x 1.6mm
  • Weight: 0.1 kg
Key Features
  • Pre-cut 25mm lengths for consistent installation
  • Designed for insulating terminals, joints, cable connections and lug barrels
  • Flame-retardant thin wall construction
  • UV resistant black polyolefin material
  • Resistant to common fluids, solvents and abrasion
  • Flexible tubing with 2:1 shrink ratio
  • RoHS compliant
  • Packaged as 100 individual sleeves
Applications
  • Insulating electrical terminals and crimp connections
  • Covering cable joints and splices
  • Protecting lug barrels and conductor ends
  • Electrical and electronic wiring assemblies
  • Cable identification and mechanical protection
  • Automotive, communications and general electrical work
Standards & Compliance
  • AS/NZS 3000:2018 applies to the selection and installation of insulated wiring systems where the product is used in fixed electrical installations; CABAC product-specific documentation identifies UL 224 VW-1 rather than an AS/NZS product standard.
Environmental Benefits
  • RoHS-compliant material supports restriction of specified hazardous substances
  • UV resistance, abrasion resistance and a wide operating temperature range can extend service life and reduce replacement waste
  • Thin-wall construction uses a relatively small volume of polymer per sleeve
  • Provides durable insulation and protection that can help extend the working life of cable assemblies
Warranty Information

Covered by CABAC warranty and returns terms and applicable Australian Consumer Law guarantees. No specific duration for this heat shrink product was published; CABAC notes that accessories may be excluded from its lifetime-of-product warranty.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
