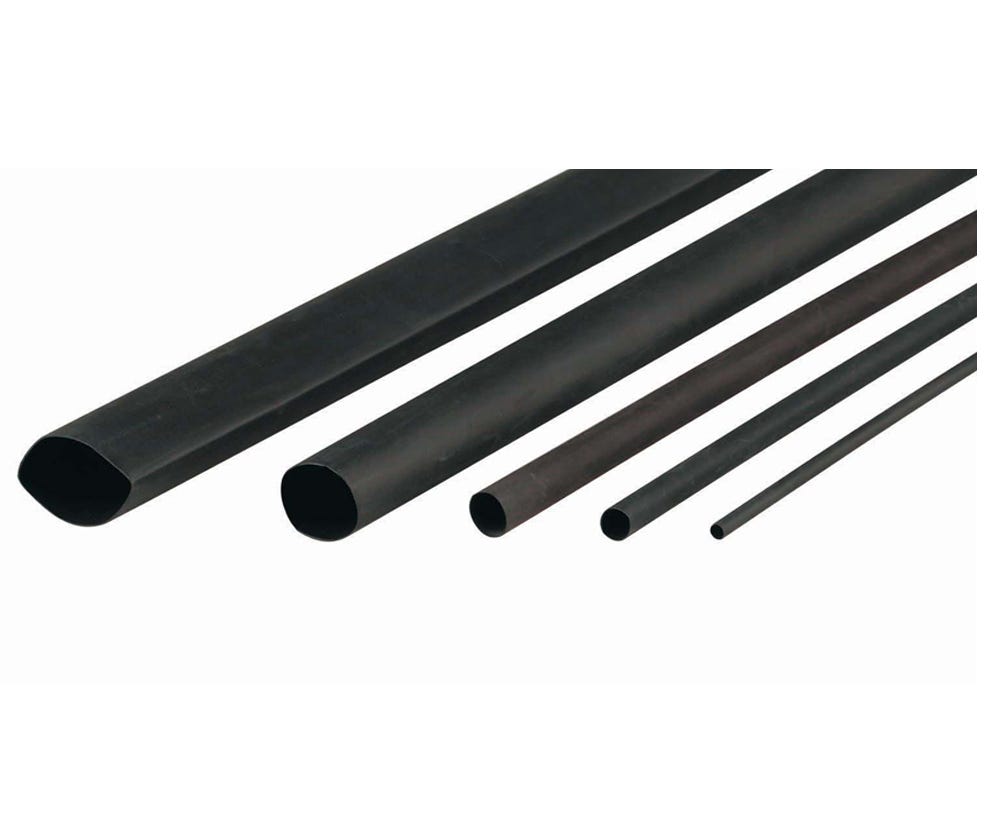

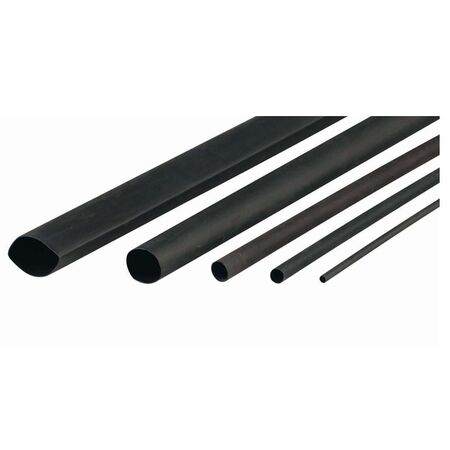

Thin Wall Heat Shrink 102mm 150mm Cut Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP102BK-150
$7.20 List price: $9.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 102mm supplied diameter cut to 150mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP102BK Heat Shrink Tubing, Polyolefin Heat Shrink Sleeve, Electrical Heat Shrink Tubing

Technical Specifications
  • Material: Electron-beam cross-linked polyolefin
  • Colour: Black
  • Type: Thin wall, unlined tubing
  • Pack Quantity: 100 cut pieces
  • Pre-Shrink Diameter: 102 mm
  • Recovered Diameter: 50.8 mm
  • Recovered Wall Thickness: 1.35 mm
  • Cut Length: 150 mm per piece
  • Shrink Ratio: Approximately 2:1
  • Continuous Operating Temperature: -75°C to +135°C
  • Minimum Shrink Temperature: Above 105°C
  • Voltage Rating: 600 V
  • Flame Rating: UL224 VW-1
  • Standards: ASTM D2671; UL224 VW-1, File E366157
  • Adhesive Lined: No
  • Dimensions (H x L x W): 102mm x 150mm x 102mm
  • Weight: 0.45 kg
Key Features
  • Insulates terminals, joints, cable connections and lug barrels
  • Flexible polyolefin construction for electrical and mechanical protection
  • Resistant to common fluids, solvents, abrasion and UV radiation
  • Flame-retardant formulation
  • Shrinks to approximately 50.8 mm recovered diameter
  • Pre-cut 150 mm lengths reduce preparation time and material waste
  • Suitable for shrinking with a heat gun
Applications
  • Insulating cable terminals and lugs
  • Protecting cable joints and connections
  • Electrical wiring and harness assemblies
  • Mechanical protection of conductors
  • Colour coding and bundling of electrical conductors
Standards & Compliance
  • AS/NZS 3000:2018 may apply to the selection and installation of heat-shrink insulation within fixed electrical installations; the CABAC product literature specifies UL224 VW-1 and ASTM D2671 rather than an AS/NZS product certification.
Environmental Benefits
  • Durable polyolefin construction and resistance to abrasion, UV and common fluids can extend service life and reduce replacement waste
  • Pre-cut lengths help minimise installation offcuts compared with cutting from longer lengths
Warranty Information

CABAC’s general warranty terms provide a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and pack configuration before ordering.
