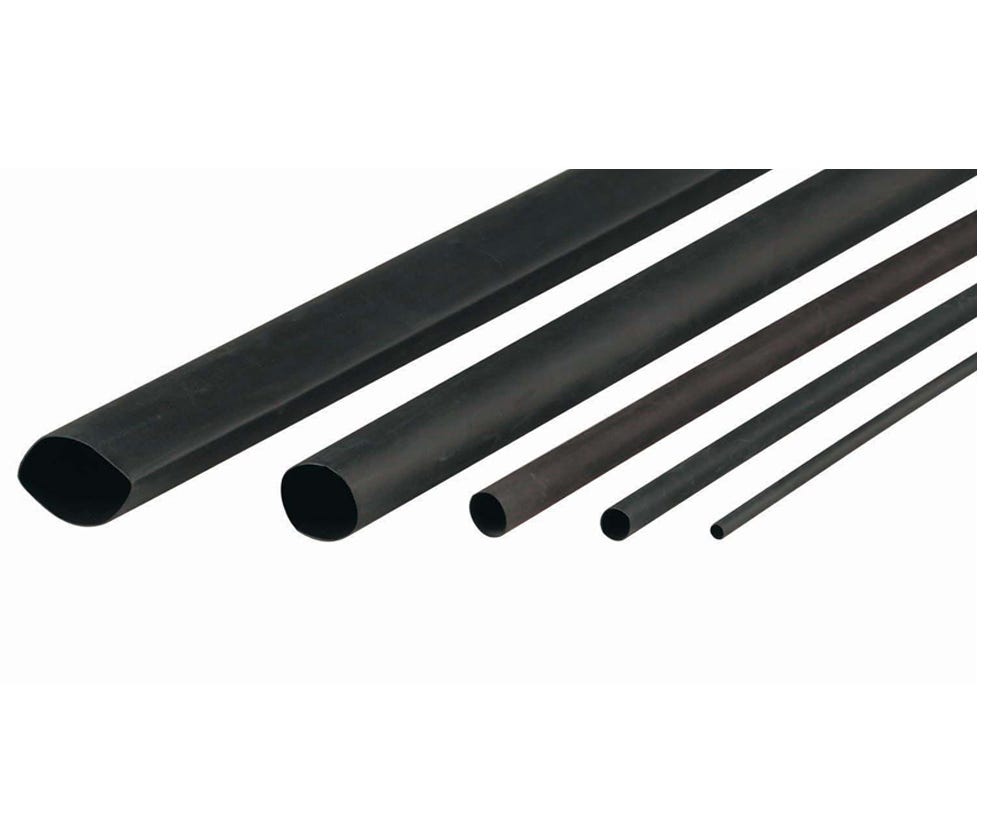

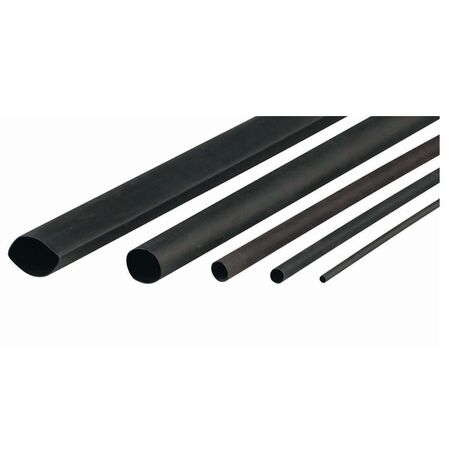

Thin Wall Heat Shrink 13mm 50mm Cut Piece Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP13BK-50
$0.40 List price: $0.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 13mm supplied diameter cut to 50mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP13BK Cut Pieces, Black Heat Shrink, Polyolefin Heat Shrink Tubing, Electrical Heat Shrink Sleeves

Technical Specifications
  • Product Type: Thin wall heat shrink tubing cut pieces
  • Colour: Black
  • Pre-Shrink Diameter: 12.7mm nominal
  • Recovered Diameter: 6.4mm nominal
  • Recovered Wall Thickness: 0.62mm
  • Cut Length: 50mm per piece
  • Pack Quantity: 100 pieces
  • Shrink Ratio: Approximately 2:1
  • Material: Cross-linked polyolefin
  • Adhesive Lined: No
  • Features: Flame retardant, UV resistant and halogen free
  • Water Absorption: 0.15% maximum
  • Dimensions (H x L x W): 50mm x 12.7mm x 12.7mm
  • Weight: 0.12 kg
Key Features
  • Pre-cut 50mm lengths for convenient installation
  • Insulates terminals, cable joints and lug barrels
  • Approximately 2:1 shrink ratio
  • Black colour provides a neat, professional finish
  • Flexible thin wall construction
  • Flame retardant and UV resistant
  • Halogen-free material
  • Suitable for electrical, electronic and mechanical applications
Applications
  • Insulating cable terminals and crimp lugs
  • Protecting electrical cable joints and splices
  • Covering exposed conductor and connector barrels
  • Cable identification and bundling
  • Electrical, electronic and general mechanical insulation
Standards & Compliance
  • Use within electrical installations should follow the applicable requirements of AS/NZS 3000:2018
Environmental Benefits
  • Halogen-free construction can reduce the release of corrosive halogenated gases if exposed to fire
  • Durable UV-resistant material can extend service life and reduce replacement waste
  • Lightweight polyolefin construction uses less material than many heavy-duty protective alternatives
Warranty Information

CABAC products are generally covered by a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law rights also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
