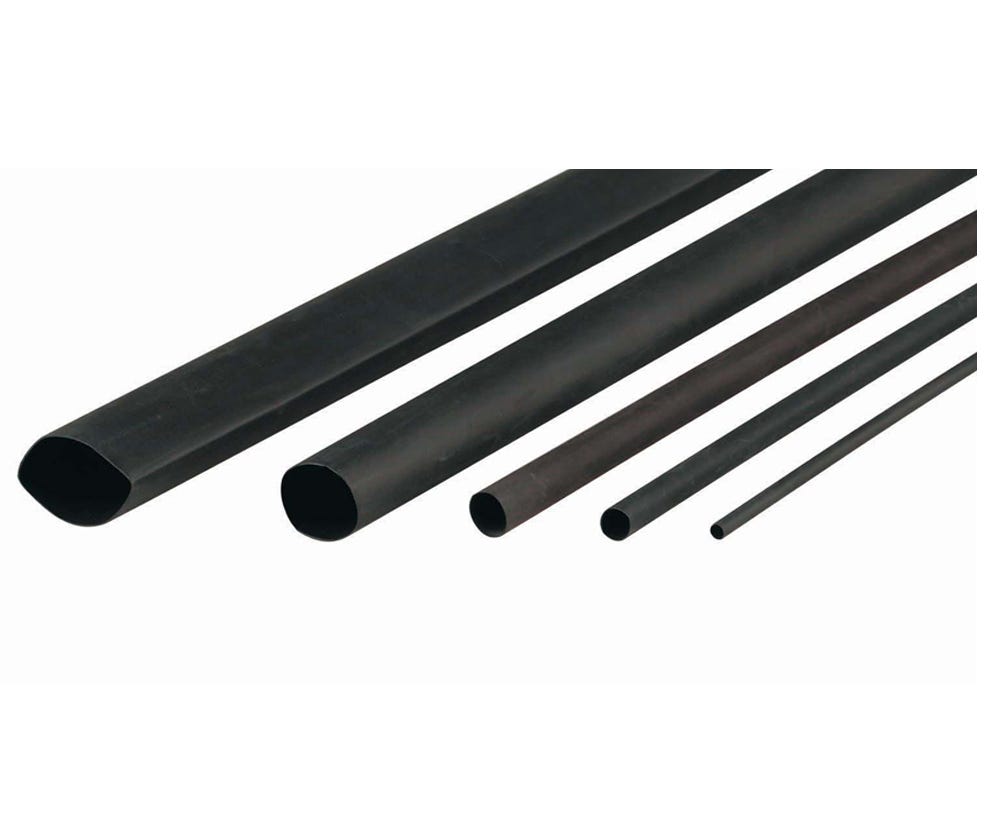

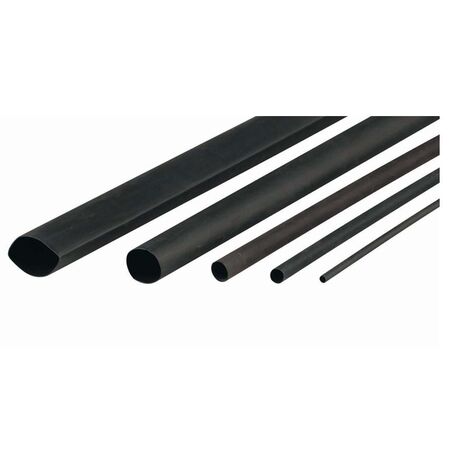

Thin Wall Heat Shrink 20mm 50mm Cut Piece Black Pack of 100 Cabac
Cabac thin wall heat shrink 20mm supplied diameter cut to 50mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Black Heat Shrink Tubing, Thin Wall Heat Shrink Sleeve, Polyolefin Heat Shrink, Electrical Insulation Tubing
Technical Specifications
- Material: Electron beam cross-linked polyolefin
- Pre-Shrink Diameter: 19.1mm nominal
- After-Shrink Diameter: 9.5mm nominal
- Recovered Wall Thickness: 0.69mm
- Shrink Ratio: Approximately 2:1
- Cut Length: 50mm per piece
- Pack Quantity: 100 pieces
- Colour: Black
- Operating Temperature: -55°C to +135°C
- Features: Flame retardant, halogen free and UV resistant
- Resistance: Common fluids, solvents and abrasion
- Compliance: RoHS compliant
- Typical Full-Length Equivalent: 5 metres
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.2 kg
Key Features
- Pre-cut 50mm lengths for convenient installation
- Designed for insulating terminals, joints, conductors and lug barrels
- Approximately 2:1 shrink ratio
- Electron beam cross-linked polyolefin construction
- Flame retardant and halogen free
- UV resistant for improved service life
- Flexible and resistant to abrasion, fluids and common solvents
- Black colour provides durable insulation and cable identification
Professional Installation Requirements
- Apply using a suitable controlled heat source or heat gun. Electrical installation work should be performed by suitably qualified personnel in accordance with manufacturer instructions and applicable wiring rules.
Applications
- Insulation of electrical terminals and crimp joints
- Protection of cable lugs and lug barrels
- Insulation and strain relief for conductors
- Cable identification and bundling
- Mechanical and environmental protection of electrical connections
Environmental Benefits
- Durable cross-linked polyolefin construction can extend component service life and reduce replacement waste
- UV and chemical resistance support longer service life in suitable environments
- RoHS compliant material helps restrict certain hazardous substances
Warranty Information
CABAC standard warranty applies. Where no product-specific warranty is stated, CABAC provides a 12-month warranty from the date of purchase, subject to its warranty terms and exclusions.
Available Now
Available through CABAC and authorised Australian electrical distributors.
