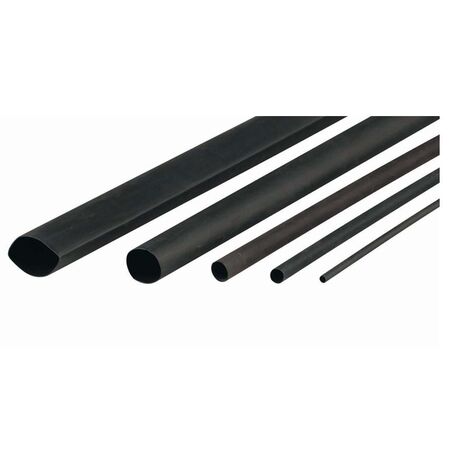

Thin Wall Heat Shrink 20mm 75mm Cut Piece Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP20BK-75
$0.60 List price: $0.90
+ −
30 Days Return Electricians Unlock Trade Access

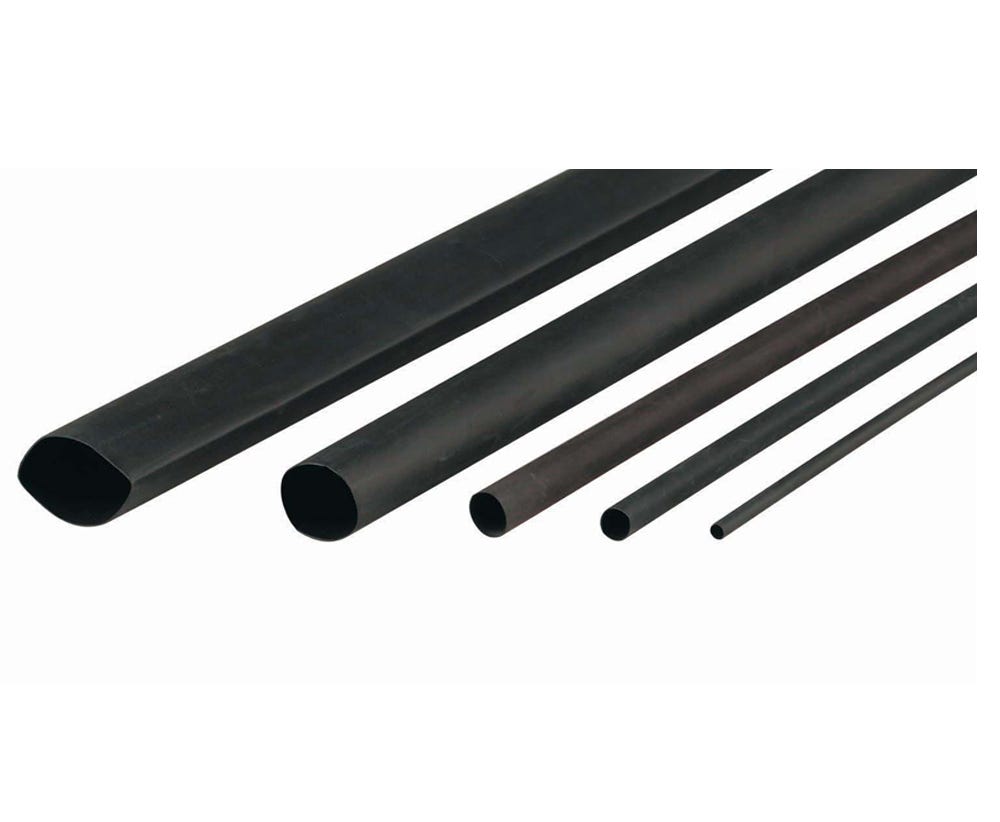

Cabac thin wall heat shrink 20mm supplied diameter cut to 75mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP20BK Heat Shrink, Thin Wall Heatshrink Sleeves, Polyolefin Heat Shrink Tubing

Technical Specifications
  • Product Type: Thin wall heat shrink tubing
  • Material: Chemically cross-linked, thermally stabilised polyolefin
  • Colour: Black
  • Pre-Shrink Diameter: 19.1mm
  • After-Shrink Diameter: 9.5mm
  • Recovered Wall Thickness: 0.69mm
  • Shrink Ratio: 2:1 nominal
  • Shrink Temperature: Above 100°C
  • Continuous Operating Temperature: -75°C to +135°C
  • Voltage Rating: 600V
  • Breakdown Voltage: 25kV/mm wall thickness
  • Flammability: Flame retardant; passed ASTM-D-2671
  • Pack Quantity: 100 cut pieces
  • Cut Length: 75mm per piece
  • Glue Lined: No
  • Conformant Standards: MIL-I-23053/5 Class 3; JIS
  • Compliant Standard: UL224 VW1, File No. E366157
  • Dimensions (H x L x W): 19.1mm x 75mm x 19.1mm
  • Weight: 0.2 kg
Key Features
  • Insulates terminals, joints, cable connections and lug barrels
  • 2:1 shrink ratio accommodates a range of cable and connection sizes
  • Flame-retardant black polyolefin construction
  • UV stabilised for improved resistance to outdoor exposure
  • Resistant to common fluids, solvents, abrasion and impact
  • Pre-cut 75mm sleeves reduce preparation time and material waste
  • Suitable for electrical and electronic applications
Applications
  • Insulating cable terminals and crimp connections
  • Protecting joints and lug barrels
  • Electrical cable identification and colour coding
  • Mechanical protection for wires and connections
  • Electrical and electronic assembly work
Environmental Benefits
  • Pre-cut sleeves can reduce offcuts and material waste compared with cutting from a continuous reel
  • Durable insulation helps extend the service life of protected electrical connections, reducing replacement waste
  • Long operating temperature range supports extended service life in suitable applications
Warranty Information

Cabac products are generally covered by a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
