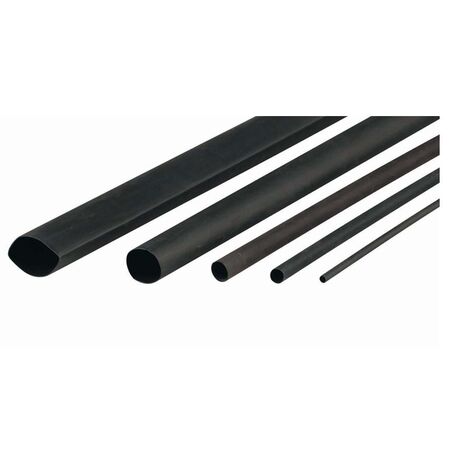

Thin Wall Heat Shrink 38mm 100mm Cut Piece Black Cabac

BRAND: CABAC
SKU: XLP38BK-100
$175.50 List price: $234.10
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 38mm supplied diameter cut to 100mm pieces in black. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: Black heat shrink tubing, thin wall heat shrink, electrical heat shrink sleeve, XLP38BK cut piece

Technical Specifications
  • Material: Electron beam cross-linked polyolefin
  • Colour: Black
  • Pre-shrink diameter: 38.1mm
  • Recovered diameter: 19.1mm
  • Shrink ratio: Approximately 2:1
  • Recovered wall thickness: 1mm
  • Cut length: 100mm
  • Operating temperature: -75°C to +135°C
  • Shrinkage temperature: Above 105°C
  • Voltage rating: 600V
  • Tensile strength: 10.4MPa
  • Elongation at break: 400%
  • Water absorption: Maximum 0.15%
  • Longitudinal shrinkage: Less than 5%
  • Flame performance: UL224 VW-1
  • Glue lined: No
  • Dimensions (H x L x W): 38.1mm x 100mm x 38.1mm
  • Weight: 0.1 kg
Key Features
  • Pre-cut 100mm length for convenient installation
  • Provides electrical insulation and mechanical protection
  • Shrinks to approximately half its supplied diameter
  • Flame retardant and UV resistant
  • Resistant to common fluids, solvents, impact and abrasion
  • Suitable for insulating terminals, joints and cable lug barrels
  • Flexible construction for easier fitting over cable assemblies
Applications
  • Insulating electrical terminals and cable joints
  • Covering cable lug barrels and crimp connections
  • Protecting conductors from abrasion and environmental contamination
  • Cable identification and colour coding
  • General electrical and associated industry wiring work
Standards & Compliance
  • AS/NZS 3000:2018 – relevant electrical installation requirements apply when the heat shrink is used within a wiring installation
Environmental Benefits
  • UV and abrasion resistance can extend service life and reduce replacement waste
  • Durable cross-linked polyolefin construction supports long-term use
  • Helps protect cable assemblies and reduce premature component replacement
Warranty Information

CABAC goods are generally covered by a one-year warranty against defects from the date of supply, subject to correct use and applicable Australian Consumer Law rights.

Available Now

Available through CABAC and authorised Australian electrical distributors.
