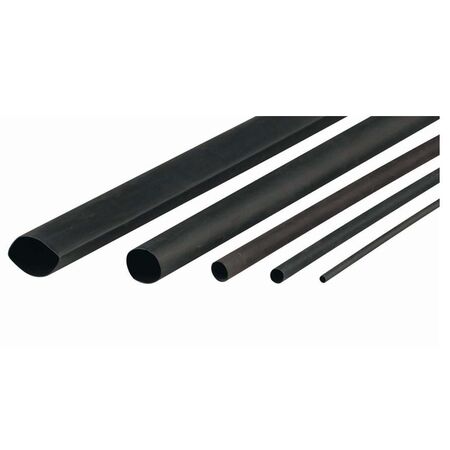

Thin Wall Heat Shrink 3mm 19mm Cut Piece Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP3BK-19
$0.40 List price: $0.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 3mm supplied diameter cut to 19mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP3BK Pre-Cut Heat Shrink, Polyolefin Heat Shrink Sleeves, Electrical Heat Shrink Tubing

Technical Specifications
  • Material: Cross-linked polyolefin
  • Colour: Black
  • Pre-Shrink Diameter: 3.2mm nominal
  • Recovered Diameter: 1.6mm nominal
  • Shrink Ratio: 2:1
  • Recovered Wall Thickness: 0.48mm nominal
  • Cut Length: 19mm
  • Pack Quantity: 100 pieces
  • Adhesive Lining: None
  • Dimensions (H x L x W): 19mm x 3.2mm x 3.2mm
  • Weight: 0.1 kg
Key Features
  • Pre-cut 19mm lengths for convenient installation
  • Insulates electrical terminals, joints and lug barrels
  • Thin-wall construction for compact finished assemblies
  • Black polyolefin tubing with 2:1 shrink ratio
  • Designed for use with heat to conform around electrical connections
  • Supplied in a pack of 100 pieces
Applications
  • Insulating crimp terminals and lug barrels
  • Protecting wire joints and splices
  • Electrical wiring repairs and harness assembly
  • Cable identification and mechanical protection
  • Low-voltage electrical and automotive wiring applications
Standards & Compliance
  • AS/NZS 3000:2018 may apply to the installation of heat shrink used within fixed electrical wiring; product-specific compliance certification was not verified.
Environmental Benefits
  • The durable polyolefin construction can extend the service life of protected electrical connections and reduce replacement waste
  • Thin-wall construction uses less material than heavier-wall heat shrink alternatives for compact insulation applications
Warranty Information

Covered by CABAC's standard 12-month warranty from date of purchase against manufacturing defects, subject to correct use and installation; Australian Consumer Law rights also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
