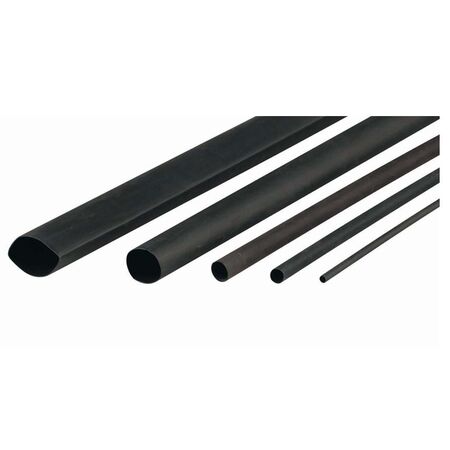

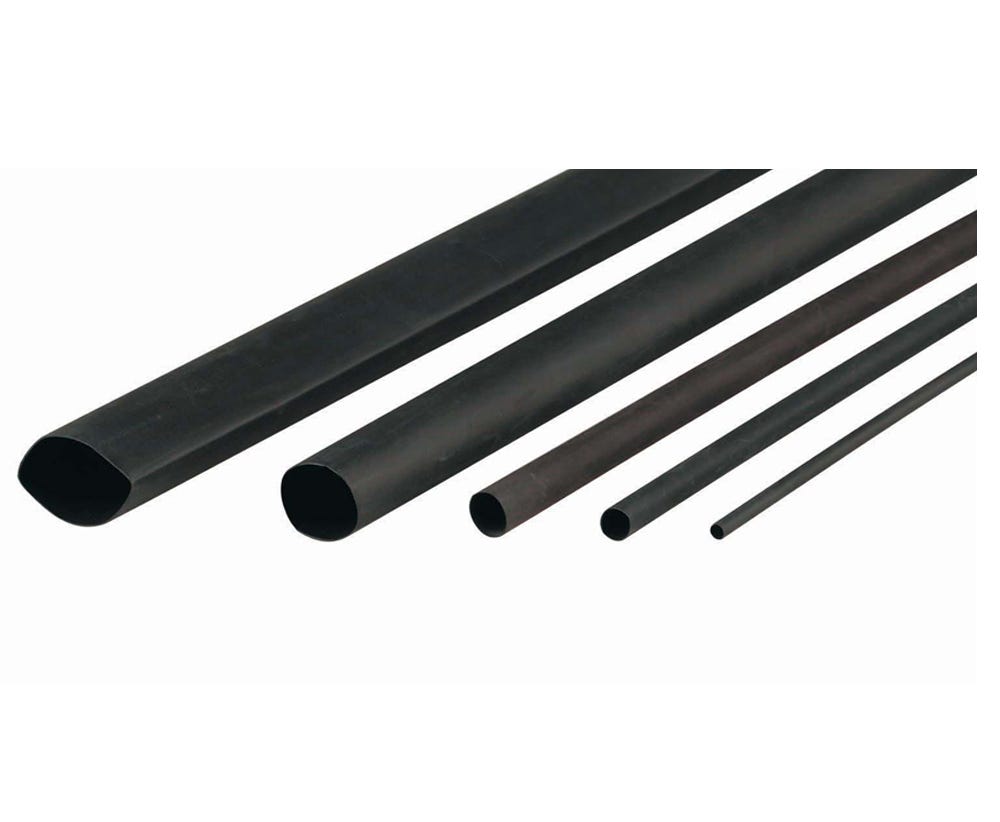

Thin Wall Heat Shrink 3mm 25mm Cut Piece Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP3BK-25
$0.50 List price: $0.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 3mm supplied diameter cut to 25mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP3BK Heat Shrink, Black Heat Shrink Sleeving, Polyolefin Heat Shrink Tubing, Pre-Cut Heat Shrink Pieces

Technical Specifications
  • Material: Electron beam cross-linked polyolefin
  • Colour: Black
  • Type: Thin wall heat shrink tubing
  • Pre-shrink diameter: 3.2mm
  • After-shrink diameter: Approximately 1.6mm
  • Shrink ratio: Approximately 2:1
  • Cut length: 25mm per piece
  • Pack quantity: 100 pieces
  • Recovered wall thickness: 0.48mm
  • Continuous operating temperature: -75°C to +135°C
  • Minimum shrinkage temperature: Above 105°C
  • Voltage rating: 600V
  • Breakdown voltage: 25kV/mm wall thickness
  • Flammability: Flame retardant
  • Environmental resistance: Resistant to common fluids, solvents, abrasion and UV
  • Compliant standards: UL 224 VW-1 and ASTM D2671
  • Dimensions (H x L x W): 3.2mm x 25mm x 3.2mm
  • Weight: 0.1 kg
Key Features
  • Pre-cut 25mm lengths for convenient installation
  • Provides electrical insulation and mechanical protection
  • Suitable for insulating terminals, joints, cable ends and lug barrels
  • Shrinks to approximately half of its supplied diameter
  • Flexible, flame retardant polyolefin construction
  • UV resistant black formulation
  • Resistant to common fluids, solvents and abrasion
  • Supplied in a 100-piece pack
Applications
  • Insulating crimp terminals and lug barrels
  • Protecting cable joints and splices
  • Insulating wire ends and soldered connections
  • Cable identification and bundling
  • Electrical, automotive, electronic and general maintenance work
Standards & Compliance
  • AS/NZS 3000:2018 – relevant wiring installation requirements when used within fixed electrical installations
Environmental Benefits
  • Durable polyolefin construction can extend the service life of protected electrical connections and reduce replacement waste
  • UV and abrasion resistance supports longer service life in suitable exposed applications
  • Pre-cut pieces help minimise offcut waste compared with cutting from bulk tubing
  • Polyolefin material may be recyclable subject to local recycling facility acceptance
Warranty Information

CABAC's general warranty provides repair or replacement for defective goods for 12 months from the date of purchase, subject to correct use and installation. Australian Consumer Law guarantees also apply. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock availability.
