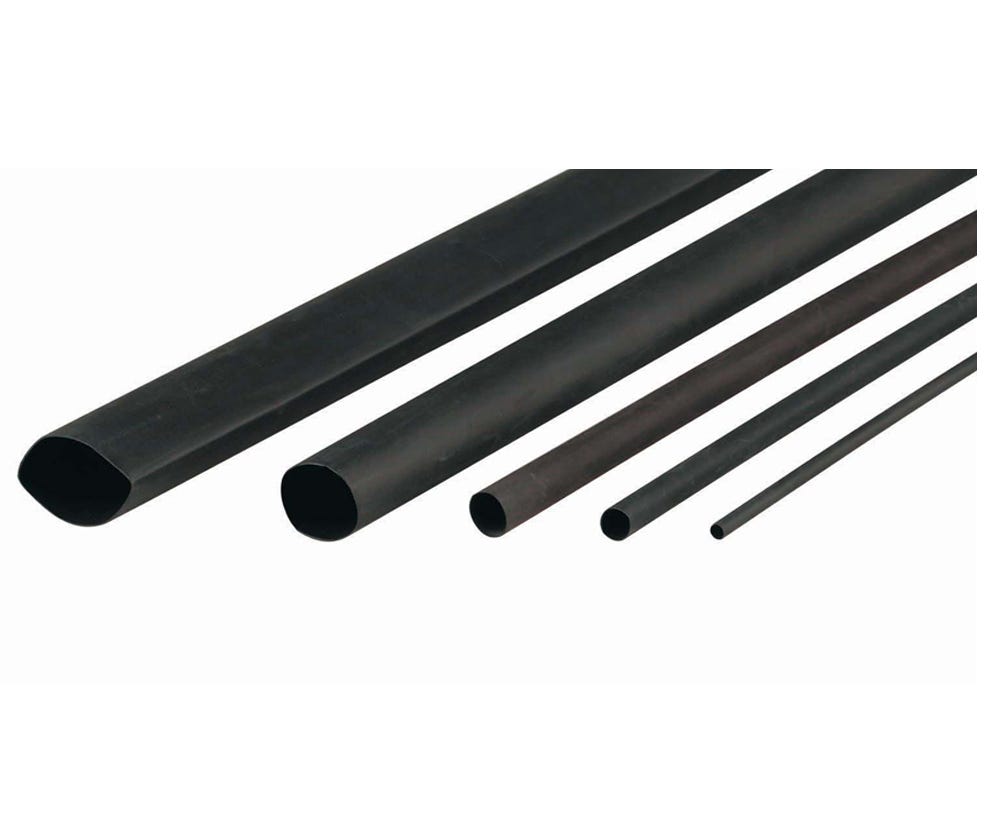

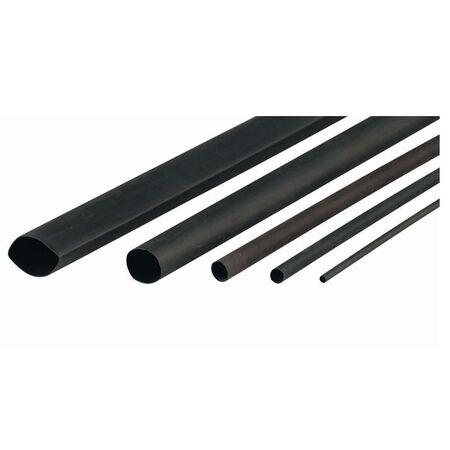

Thin Wall Heat Shrink 51mm 100mm Cut Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP51BK-100
$1.50 List price: $2.00
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 51mm supplied diameter cut to 100mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: CABAC XLP51BK Cut-Length Heat Shrink, Black Heat Shrink Sleeving, Thin Wall Polyolefin Heat Shrink

Technical Specifications
  • Material: Electron-beam cross-linked flame-retardant polyolefin
  • Colour: Black
  • Pre-shrink diameter: 50.8mm
  • After-shrink diameter: 25.4mm
  • Nominal shrink ratio: 2:1
  • Recovered wall thickness: 1.0mm
  • Cut length: 100mm per piece
  • Pack quantity: 100 pieces
  • Shrink temperature: Greater than 105°C
  • Continuous operating temperature: -75°C to +135°C
  • Voltage rating: 600V
  • Breakdown voltage: 25kV/mm wall thickness
  • Longitudinal shrinkage: Less than 5%
  • Standards and approvals: UL224 VW-1 and ASTM D2671; material conforms to MIL-I-23053/5 and JIS
  • Dimensions (H x L x W): 50.8mm x 100mm x 50.8mm
  • Weight: 0.76 kg
Key Features
  • Pre-cut 100mm lengths for convenient installation
  • 2:1 shrink ratio accommodates varying component and cable diameters
  • Flame retardant black polyolefin construction
  • UV stabilised for improved outdoor durability
  • Resistant to common fluids, solvents, abrasion and impact
  • Provides electrical insulation, mechanical protection and colour identification
  • Suitable for terminals, joints, lug barrels, cable repairs and wiring harnesses
Applications
  • Insulating electrical terminals and lug barrels
  • Protecting cable joints and splices
  • Electrical wiring harnesses
  • Cable repair and strain relief
  • Colour identification and mechanical protection of conductors
  • General electrical and electronic assemblies
Standards & Compliance
  • AS/NZS 3000:2018 – relevant to the selection and installation of insulation and wiring accessories within electrical installations; product-specific Australian certification is not stated
Environmental Benefits
  • UV, abrasion and fluid resistance can extend service life and reduce replacement frequency
  • Flame-retardant polyolefin insulation supports durable electrical assemblies
  • Long pre-cut pieces reduce installation waste compared with repeatedly cutting bulk tubing
Warranty Information

CABAC standard warranty: 12 months from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock with the distributor.
