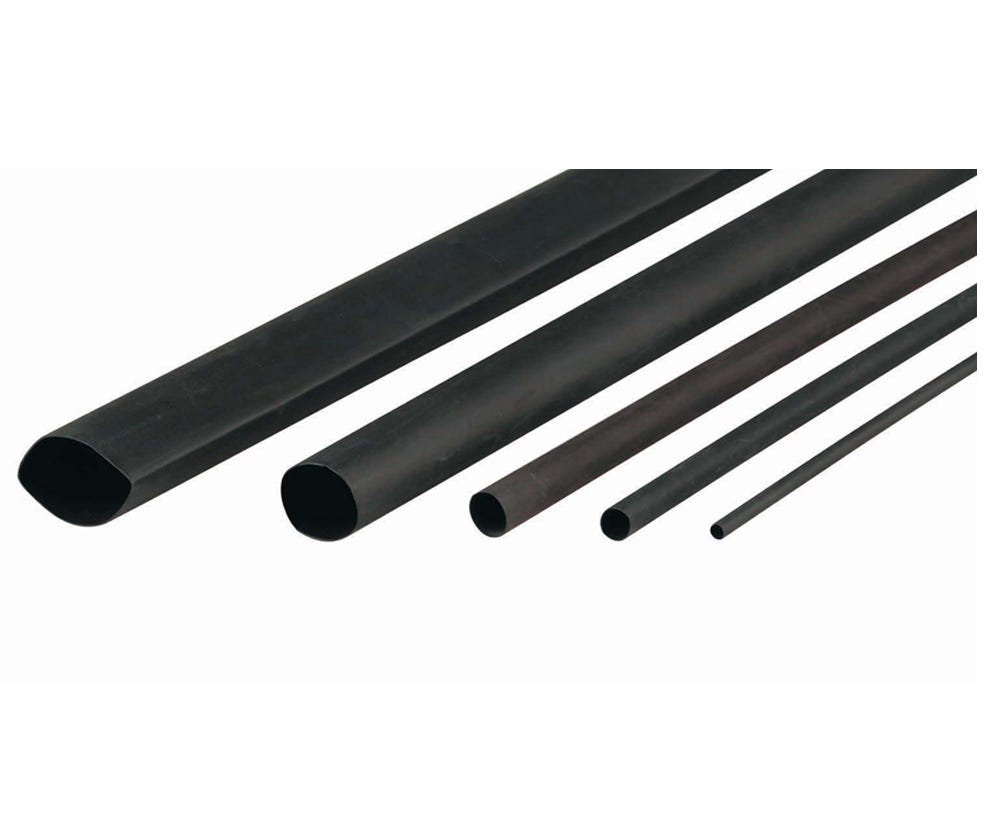

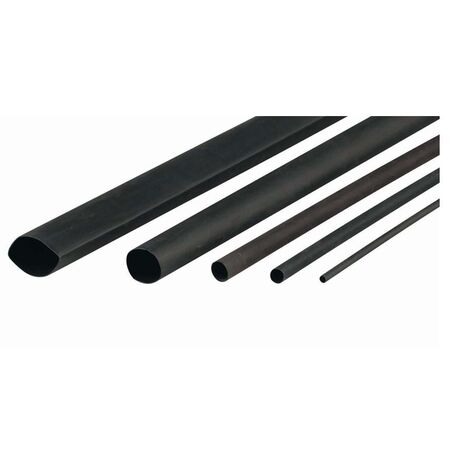

Thin Wall Heat Shrink 5mm 16mm Cut Piece Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP5BK-16
$0.40 List price: $0.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 5mm supplied diameter cut to 16mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: Thin Wall Heat Shrink Tubing, Heat Shrink Sleeves, Electrical Heat Shrink, XLP5BK Cut Lengths

Technical Specifications
  • Supplied Diameter: 5mm
  • Recovered Diameter: Approximately 2.4mm
  • Cut Length: 16mm per piece
  • Nominal Wall Thickness: 0.48mm
  • Shrink Ratio: 2:1
  • Material: Chemically cross-linked, thermally stabilised flame-retardant polyolefin
  • Continuous Operating Temperature: -75°C to +135°C
  • Shrinkage Temperature: Above 100°C
  • Voltage Rating: 600V
  • Tensile Strength: 16MPa
  • Breakdown Voltage: 25kV/mm wall thickness
  • Longitudinal Shrinkage: Less than 5%
  • Pack Quantity: 100 pieces
  • Flammability: Passes ASTM D2671
  • Conformant Product Standards: MIL-1-23053/5 and JIS
  • Product Family: CABAC XLP5BK
  • Dimensions (H x L x W): 5mm x 16mm x 5mm
  • Weight: 0.1 kg
Key Features
  • Pre-cut 16mm lengths for convenient installation
  • Insulates terminals, cable joints and lug barrels
  • 2:1 shrink ratio accommodates a range of connection sizes
  • Flame-retardant black polyolefin construction
  • Resistant to abrasion and impact
  • Black tubing is UV stabilised
  • Suitable for electrical and electronic applications
  • Compact pack of 100 pieces
Applications
  • Insulating crimp terminals and cable lugs
  • Protecting wire joints and splices
  • Strain relief for electrical connections
  • Cable identification and bundling
  • Electrical and electronic repair work
Standards & Compliance
  • AS/NZS 3000:2018 – relevant installation requirements apply when heat shrink is used within fixed electrical wiring; this is an installation standard rather than a specific product certification claim.
Environmental Benefits
  • Pre-cut lengths can reduce offcut waste compared with cutting from continuous tubing
  • Durable polyolefin construction can extend the service life of protected electrical connections and reduce replacement waste
  • Low material volume per piece supports efficient use of insulating material
Warranty Information

CABAC warranty terms generally provide 12 months against manufacturing and material defects from the invoice date to the initial purchaser, subject to correct installation, maintenance and use within specifications.

Available Now

Available through CABAC and authorised Australian electrical distributors.
