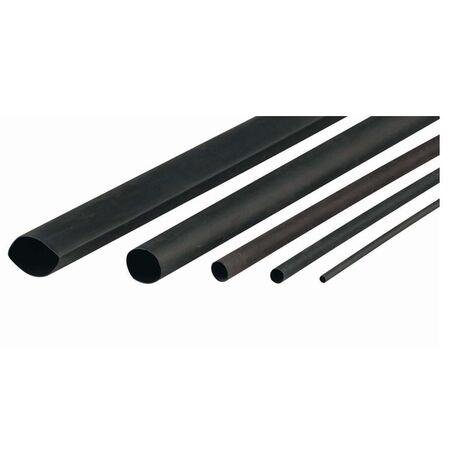

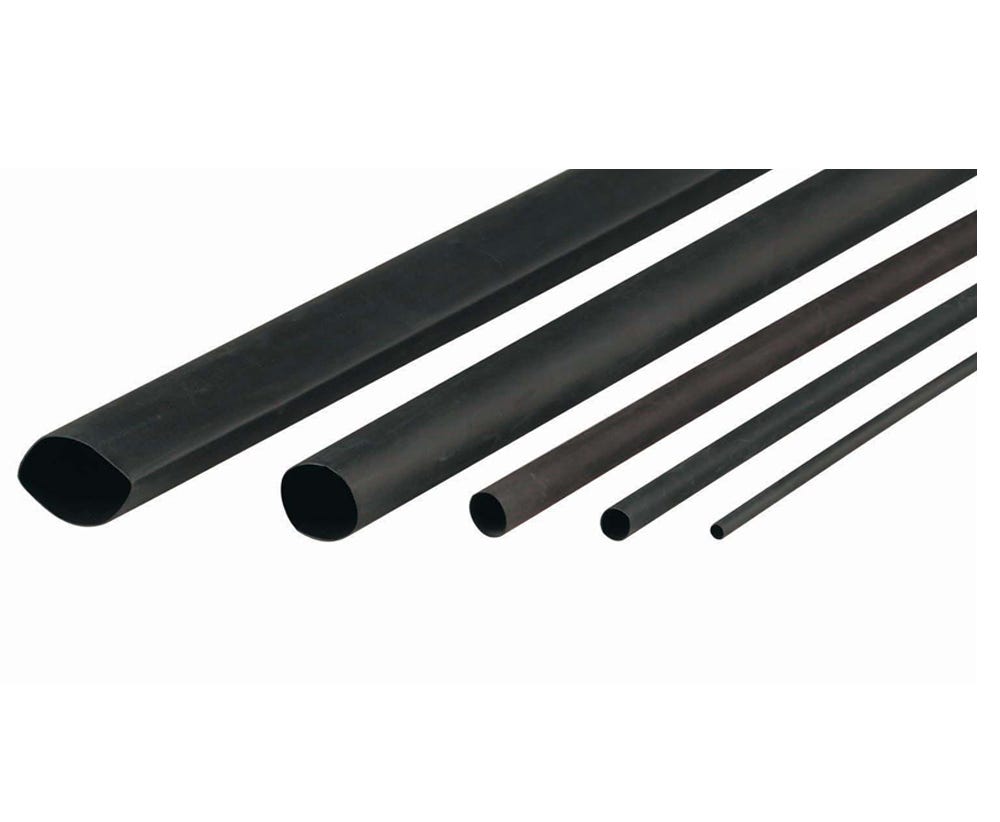

Thin Wall Heat Shrink 76mm 100mm Cut Black Pack of 100 Cabac

BRAND: CABAC
SKU: XLP76BK-100
$1.60 List price: $2.20
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thin wall heat shrink 76mm supplied diameter cut to 100mm pieces in black, pack of 100. Ideal for insulating terminals, joints and lug barrels.

Alternatively Known As: XLP76BK Heat Shrink, Thin Wall Heat Shrink Tube, Polyolefin Heat Shrink Sleeving, Electrical Heat Shrink

Technical Specifications
  • Material: Electron-beam cross-linked polyolefin
  • Colour: Black
  • Pre-shrink diameter: 76.2 mm
  • Recovered diameter: 38.1 mm
  • Shrink ratio: 2:1
  • Recovered wall thickness: 1.1-1.2 mm
  • Cut length: 100 mm per piece
  • Pack quantity: 100 pieces
  • Continuous operating temperature: -75°C to +135°C
  • Shrink temperature: Above 105°C
  • Voltage rating: 600 V
  • Breakdown voltage: 25 kV/mm wall thickness
  • Tensile strength: 10.4 MPa
  • Elongation at break: 400%
  • Water absorption: 0.15% maximum
  • Flame retardancy: UL224 VW-1
  • International compliance: ASTM D2671 and MIL-I-23053/5
  • Adhesive lined: No
  • UV stabilised: Yes, black version
  • Dimensions (H x L x W): 76.2mm x 100mm x 76.2mm
  • Weight: 0.1 kg
Key Features
  • Large 76.2 mm supplied diameter suits oversized cable bundles, terminals and lug barrels
  • Pre-cut 100 mm lengths reduce preparation time and material waste
  • 2:1 shrink ratio provides a close-fitting sleeve after heating
  • Provides electrical insulation, mechanical protection and colour identification
  • Flame-retardant polyolefin construction
  • Resistant to abrasion, common solvents and ultraviolet exposure
  • Suitable for insulating terminals, joints, splices and cable lug barrels
Applications
  • Insulating large cable terminals and lug barrels
  • Protecting cable joints, splices and connections
  • Electrical harness manufacture and repair
  • Cable identification and colour coding
  • Commercial, industrial and switchboard wiring applications
Standards & Compliance
  • AS/NZS 3000:2018 may apply to the selection and installation of heat shrink used within fixed electrical installations; the product itself is specified by CABAC to international tubing standards including UL224 VW-1, ASTM D2671 and MIL-I-23053/5.
Environmental Benefits
  • Durable polyolefin insulation can extend the service life of protected connections and reduce replacement waste.
  • Pre-cut lengths can reduce installation offcuts compared with cutting from continuous tubing.
Warranty Information

CABAC terms provide repair or replacement for defective goods for one year from the date of supply, subject to correct installation and use. Australian Consumer Law guarantees also apply where relevant.

Available Now

Available through CABAC and authorised Australian electrical wholesalers and distributors.
