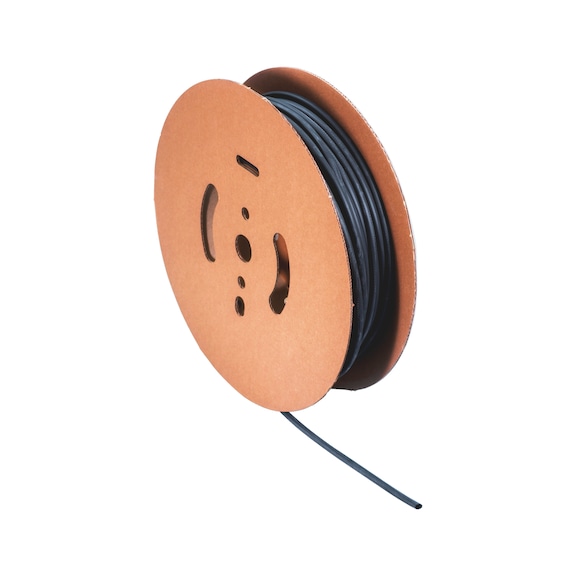

Thin-Walled Heat-Shrink Hose | 25 Meter Length | 2:1 Shrink Ratio | Flame-Retardant | by Wurth
Thin-walled heat-shrink hose designed for electrical insulation and protection, featuring a 2:1 shrink ratio and flame-retardant polyolefin material. Ideal for cable bundling and strain relief, this 25-meter length hose ensures durability and safety in automotive and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thin-Walled Heat-Shrink Hose | 25 Meter Length | 2:1 Shrink Ratio | Flame-Retardant | by Wurth
Brand: Wurth
SKU: 771790008
Alternatively Known As: Heat Shrink Tubing, Heat Shrink Sleeve, Electrical Insulation Tube, Polyolefin Heat Shrink Hose
Technical Specifications
- Colour: Black
- Diameter before shrink: 25.4 mm
- Diameter after shrink: 12.7 mm
- Sleeve-wall thickness when shrunk: 0.76 mm
- Dielectric strength: 20 kV/mm
- Minimum shrinkage temperature: 90 °C
- Maximum shrinkage temperature: 200 °C
- Operating temperature range: -55 to 125 °C
- Material: Polyolefin
- Flame-retardant: Yes
- Length: 25 meters
- Dimensions (H x L x W): 254mm x 25000mm x 254mm
- Weight: 0.3 kg
Key Features
- Thin-walled polyolefin construction
- 2:1 shrink ratio for versatile application
- Flame-retardant material
- UL 224 certified
- Large reel with 25 meter length
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper shrinkage and electrical safety.
Applications
- Electrical insulation and protection
- Cable bundling and strain relief
- Environmental protection for wiring
- Automotive and industrial wiring harnesses
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable flame-retardant material reduces risk of fire and electrical faults
- Long-lasting protection reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Thin-Walled Heat-Shrink Hose 25 Meter is available for immediate purchase, ideal for electrical insulation and protection applications.
