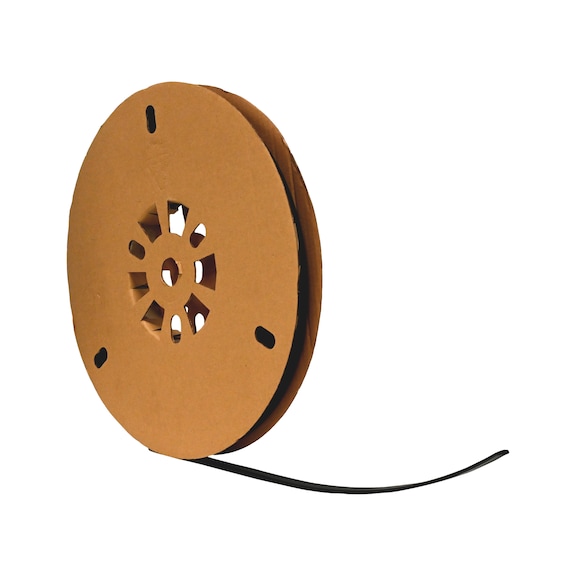

Thin-Walled Heat-Shrink Hose | No Internal Adhesive | 2:1 Shrink Ratio | Flame-Retardant Polyolefin | @50 Meter | by Wurth
Thin-walled heat-shrink hose designed for electrical insulation and protection, featuring a 2:1 shrink ratio and made from flame-retardant polyolefin. Ideal for automotive and industrial wiring harnesses, this hose ensures reliable performance in various applications, providing environmental protection and strain relief for cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thin-Walled Heat-Shrink Hose | No Internal Adhesive | 2:1 Shrink Ratio | Flame-Retardant Polyolefin | @50 Meter | by Wurth
Brand: Wurth
SKU: 771790006
Alternatively Known As: Heat Shrink Tubing, Heat Shrink Sleeve, Polyolefin Heat Shrink Hose, Electrical Insulation Sleeve
Technical Specifications
- Colour: Black
- Diameter before shrink: 12.7 mm
- Diameter after shrink: 6.4 mm
- Sleeve-wall thickness when shrunk: 0.56 mm
- Dielectric strength: 20 kV/mm
- Minimum shrinkage temperature: 90 °C
- Maximum shrinkage temperature: 200 °C
- Operating temperature range: -55 to 125 °C
- Material: Polyolefin
- Flame-retardant: Yes
- Length: 50 meters
- Dimensions (H x L x W): 56mm x 50000mm x 127mm
- Weight: 0.5 kg
Key Features
- Thin-walled design with no internal adhesive coating
- High shrink ratio of 2:1
- Flame-retardant polyolefin material
- UL 224 certified
- Large reel with 50 meters length
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper shrinkage and electrical safety.
Applications
- Electrical insulation and protection
- Cable bundling and strain relief
- Environmental protection for wiring
- Automotive and industrial wiring harnesses
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable flame-retardant material reduces need for frequent replacements
- Protects wiring from environmental damage, extending equipment lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Thin-Walled Heat-Shrink Hose No Internal Adhesive Coating 50 Meter is available for immediate purchase, ideal for electrical insulation and protection applications.
