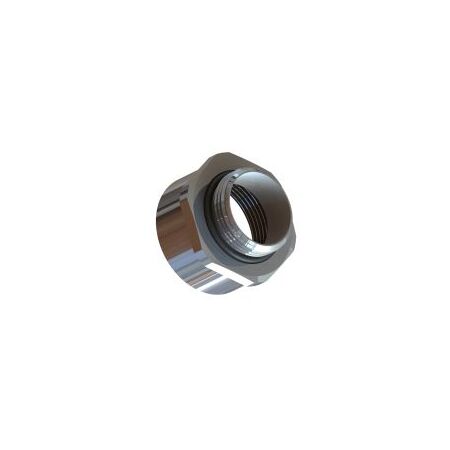

Thread Enlarger M12 Male to M16 Female Nickel Brass Pack of 5 Cabac

BRAND: CABAC
SKU: E/M12-M16/NPB
$5.20 List price: $6.90
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M12 male to M16 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: Metric Thread Enlarger, Cable Gland Thread Adaptor, Enclosure Thread Adaptor, M12 to M16 Enlarger

Technical Specifications
  • Part Number: E/M12-M16/NPB
  • Pack Quantity: 5 pieces
  • Outer Thread: M12 x 1.5 male
  • Inner Thread: M16 x 1.5 female
  • Material: Nickel-plated brass
  • Plating Thickness: 2–3 µm
  • Seal: NBR O-ring
  • Overall Length: 10.5 mm
  • Spanner Size: 18 mm
  • Operating Temperature: -40°C to 100°C
  • Short-Term Temperature: Up to 120°C
  • Dimensions (H x L x W): 10.5mm x 10.5mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Converts an M12 male enclosure or gland thread to an M16 female thread
  • Nickel-plated brass construction provides corrosion resistance and mechanical durability
  • NBR O-ring supports sealing against dust and moisture when correctly installed
  • Compatible with standard ISO metric threads
  • Suitable for cable glands, conduit fittings, junction boxes, panels and equipment housings
  • Supplied as a five-piece pack
Applications
  • Adapting cable gland threads on electrical enclosures
  • Connecting M16 cable glands or conduit fittings to M12 enclosure entries
  • Electrical control panels and junction boxes
  • Industrial machinery and equipment housings
  • Indoor and outdoor wiring-protection installations
Environmental Benefits
  • Nickel-plated brass is durable and recyclable at end of service life
  • Long service life can reduce replacement frequency and associated material waste
  • NBR sealing helps protect enclosure entries from dust and moisture, supporting equipment longevity
Warranty Information

Covered by CABAC warranty terms and applicable Australian Consumer Law guarantees. No specific warranty duration was published for this thread enlarger.

Available Now

Available through CABAC and authorised Australian electrical distributors.
