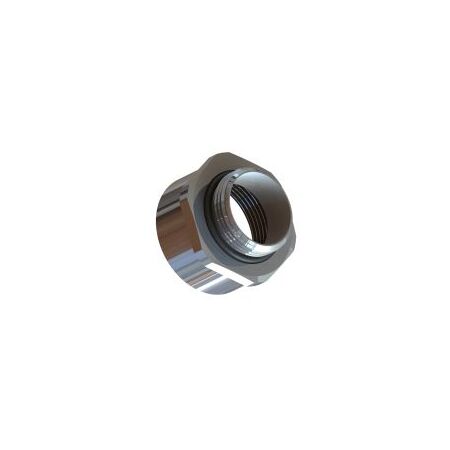

Thread Enlarger M16 Male to M20 Female Nickel Brass Pack of 5 Cabac

BRAND: CABAC
SKU: E/M16-M20/NPB
$9.50 List price: $12.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M16 male to M20 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: Metric Thread Enlarger, Cable Gland Thread Adapter, Enclosure Thread Enlarger, M16 to M20 Thread Adaptor

Technical Specifications
  • Part Number: E/M16-M20/NPB
  • Pack Quantity: 5
  • Body Material: Brass
  • Finish: Nickel-plated
  • Plating Thickness: 2–3 µm
  • Male Thread: M16 x 1.5
  • Female Thread: M20 x 1.5
  • Seal: NBR nitrile rubber O-ring
  • Thread Type: ISO metric
  • Thread Length: 5.0 mm
  • Across Flats: 22 mm
  • Overall Length: 10.5 mm
  • Operating Temperature: -40°C to 100°C; short-term up to 120°C
  • Dimensions (H x L x W): 10.5mm x 22mm x 22mm
  • Weight: 0.1 kg
Key Features
  • Adapts an M16 enclosure or accessory thread to accept an M20 cable gland or fitting
  • Nickel-plated brass construction provides mechanical strength and corrosion resistance
  • NBR O-ring supports sealing against dust and moisture
  • ISO metric M16 x 1.5 male to M20 x 1.5 female thread configuration
  • Suitable for electrical panels, junction boxes, enclosures and industrial equipment
  • Designed for indoor and outdoor thread-adaptation applications
Applications
  • Adapting cable gland threads on electrical enclosures
  • Connecting M20 cable glands or conduit fittings to M16 threaded entries
  • Electrical panels, junction boxes and equipment housings
  • Industrial and commercial cable-management installations
Environmental Benefits
  • Brass and nickel-plated brass components can be recovered through metal recycling at end of service life
  • Durable metal construction can extend the service life of enclosure and cable-entry assemblies, reducing replacement waste
  • NBR sealing helps maintain enclosure protection and may reduce premature component replacement
Warranty Information

CABAC's general warranty provides repair or replacement for defective goods for 12 months from the date of supply where no product-specific warranty is stated, subject to conditions including correct installation and use. Australian Consumer Law guarantees also apply. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns))

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the supplier.
