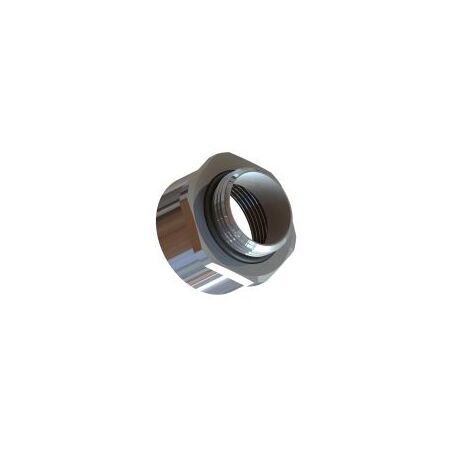

Thread Enlarger M25 Male to M32 Female Nickel Brass Pack of 3 Cabac

BRAND: CABAC
SKU: E/M25-M32/NPB
$19.80 List price: $26.40
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M25 male to M32 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: M25 to M32 Metric Thread Adaptor, Cable Gland Thread Enlarger, Enclosure Thread Enlarger

Technical Specifications
  • Product Type: Thread enlarger
  • Pack Quantity: 3 pieces
  • Male Thread: M25 x 1.5
  • Female Thread: M32 x 1.5
  • Material: Brass
  • Finish: Nickel plating, 2–3 µm
  • Seal Material: NBR nitrile rubber O-ring
  • Thread Length: 7 mm
  • Overall Length: 12 mm
  • Across Flats: 35 mm
  • Operating Temperature: -40°C to 100°C; short-term up to 120°C
  • Dimensions (H x L x W): 12mm x 35mm x 35mm
  • Weight: 0.12 kg
Key Features
  • Converts an M25 male thread to an M32 female thread
  • Suitable for adapting cable glands, conduit fittings and enclosure entries
  • Nickel-plated brass construction provides corrosion resistance and mechanical durability
  • NBR O-ring helps maintain a dust- and moisture-resistant seal
  • ISO metric thread profile with 1.5 mm pitch
  • Supplied as a pack of three
Applications
  • Electrical enclosures and junction boxes
  • Control panels and industrial equipment housings
  • Cable gland and conduit thread adaptation
  • Indoor and outdoor electrical installations where compatible enclosure sealing is required
Environmental Benefits
  • Brass construction is recyclable at end of service life
  • Durable nickel-plated finish and replaceable enclosure compatibility can extend service life and reduce component waste
  • NBR sealing supports enclosure protection against dust and moisture, helping protect connected electrical equipment
Warranty Information

Covered by CABAC's general 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct installation and use; Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
