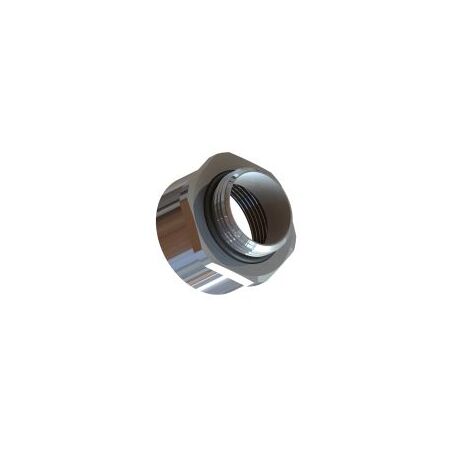

Thread Enlarger M32 Male to M40 Female Nickel Brass Pack of 2 Cabac

BRAND: CABAC
SKU: E/M32-M40/NPB
$25.80 List price: $34.40
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M32 male to M40 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: Metric Thread Enlarger, Cable Gland Thread Adaptor, Enclosure Thread Enlarger, M32 to M40 Thread Adaptor

Technical Specifications
  • Part Number: E/M32-M40/NPB
  • Pack Quantity: 2 pieces
  • Male Thread: M32 x 1.5
  • Female Thread: M40 x 1.5
  • Material: Brass body with nickel plating
  • Plating Thickness: 2–3 µm
  • Seal: NBR O-ring
  • Thread Type: ISO metric
  • Thread Length: 7 mm
  • Across Flats: 45 mm
  • Overall Length: 13 mm
  • Operating Temperature: -40°C to 100°C; short-term to 120°C
  • Dimensions (H x L x W): 13mm x 45mm x 45mm
  • Weight: 0.1 kg
Key Features
  • Converts an M32 enclosure entry to accept an M40 gland or accessory
  • Nickel-plated brass construction for corrosion resistance and mechanical durability
  • NBR O-ring provides sealing at the enclosure interface
  • Compatible with standard M32 x 1.5 and M40 x 1.5 metric threads
  • Suitable for electrical panels, junction boxes and industrial enclosures
  • Supplied in a pack of two
Applications
  • Adapting cable gland threads on electrical enclosures
  • Conduit and cable management installations
  • Electrical panels and junction boxes
  • Industrial equipment with mismatched metric entry threads
  • Indoor and outdoor enclosure applications where the selected gland and enclosure ratings are maintained
Environmental Benefits
  • Brass is a durable and recyclable metal that can be recovered at end of service life
  • Nickel-plated construction supports extended service life and reduces replacement waste
  • Reusable mechanical fitting requires no electrical power or consumable operating materials
Warranty Information

CABAC standard warranty: 12 months from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law guarantees also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
