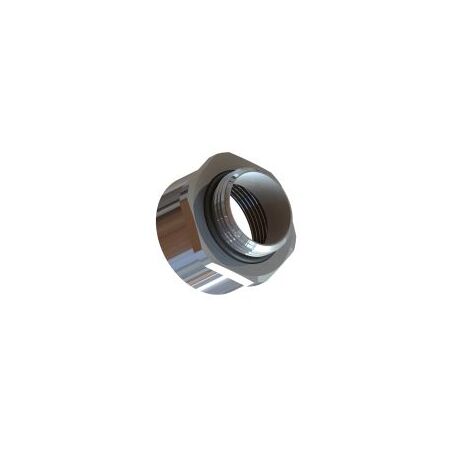

Thread Enlarger M40 Male to M50 Female Nickel Brass Cabac

BRAND: CABAC
SKU: E/M40-M50/NPB
$43.00 List price: $57.30
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M40 male to M50 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: Metric Thread Enlarger, Cable Gland Thread Enlarger, Enclosure Thread Adaptor, M40 to M50 Thread Adaptor

Technical Specifications
  • Item Number: E/M40-M50/NPB
  • Body Material: Brass
  • Plating: Nickel, 2–3 µm thickness
  • Outer Thread: M40 x 1.5 male
  • Inner Thread: M50 x 1.5 female
  • O-Ring Material: NBR nitrile rubber
  • Thread Length: 8 mm
  • Overall Length: 16 mm
  • Spanner Size: 55 mm
  • Operating Temperature: -40°C to 100°C, short-term to 120°C
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 16mm x 55mm x 55mm
  • Weight: 0.13 kg
Key Features
  • Converts an M40 male thread to an M50 female thread
  • Nickel-plated brass construction for strength and corrosion resistance
  • NBR O-ring supports environmental sealing against dust and moisture
  • Suitable for cable glands, conduit fittings and enclosure entries
  • Compatible with ISO metric M x 1.5 threads
  • Suitable for indoor and outdoor electrical and industrial installations
Applications
  • Electrical enclosures and junction boxes
  • Control panels and switchboards
  • Cable gland and conduit thread adaptation
  • Industrial equipment housings
  • Indoor and outdoor electrical installations
Standards & Compliance
  • IEC 62444 is the applicable international cable gland standard for construction, performance and testing; verify the complete gland and enclosure assembly against the requirements of the installation.
Environmental Benefits
  • Brass is a durable and recyclable engineering metal, supporting recovery at end of service life
  • Nickel plating improves corrosion resistance and can extend service life, reducing replacement waste
  • Reusable mechanical thread adaptor avoids replacing an enclosure or gland solely because of mismatched thread sizes
Warranty Information

Covered by Cabac’s applicable warranty terms and Australian Consumer Law guarantees. Cabac’s published terms provide for repair or replacement of goods under warranty, but no fixed warranty duration is specified for this accessory.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time before ordering.
