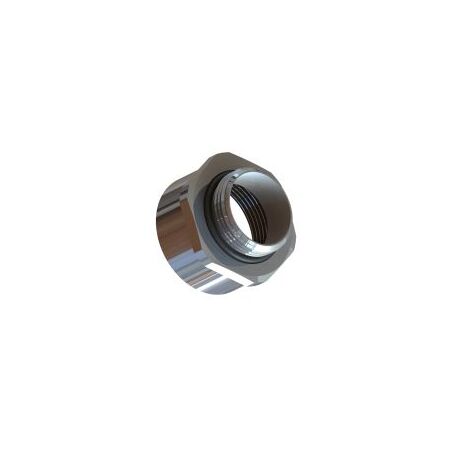

Thread Enlarger M50 Male to M63 Female Nickel Brass Cabac

BRAND: CABAC
SKU: E/M50-M63/NPB
$55.00 List price: $73.30
+ −
30 Days Return Electricians Unlock Trade Access
Cabac thread enlarger features M50 male to M63 female threads, nickel-plated brass, and NBR O-ring seal. Ideal for adapting gland threads on enclosures.

Alternatively Known As: Metric Thread Enlarger, Cable Gland Thread Adapter, Enclosure Thread Enlarger, M50 to M63 Enlarger

Technical Specifications
  • Item Number: E/M50-M63/NPB
  • Material: Brass
  • Plating: Nickel, approximately 2–3 µm
  • Male Thread: M50 x 1.5
  • Female Thread: M63 x 1.5
  • Seal: NBR O-ring
  • Operating Temperature: -40°C to 100°C
  • Short-Term Temperature: Up to 120°C
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 31mm x 9mm x 66mm
  • Weight: 0.16 kg
Key Features
  • Converts an M50 male thread to an M63 female thread
  • Nickel-plated brass construction for corrosion resistance and mechanical durability
  • NBR O-ring supports sealing against dust and moisture
  • Suitable for adapting cable glands, conduit fittings and enclosure accessories
  • Compatible with ISO metric threads
  • Designed for electrical, industrial and commercial enclosure applications
Applications
  • Electrical enclosures and junction boxes
  • Control panels and switchboards
  • Adapting cable glands to larger enclosure entry threads
  • Conduit and cable-management installations
  • Industrial equipment housings
Environmental Benefits
  • Brass construction is recyclable at end of service life
  • Nickel plating and the replaceable-style sealing arrangement support extended service life and reduced replacement waste
  • The NBR O-ring helps maintain enclosure sealing, supporting protection of installed electrical equipment from dust and moisture
Warranty Information

Covered by CABAC's standard warranty provisions for defective goods for one year from the date of supply, subject to correct installation, use and applicable Australian Consumer Law guarantees.

Available Now

Available through CABAC and authorised Australian electrical distributors.
