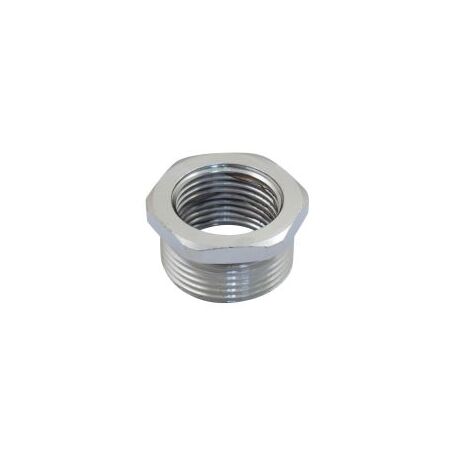

Thread Reducer M20 Male to M12 Female Nickel Brass Adaptaflex
Adaptaflex conduit thread reducer features M20 male to M12 female thread in nickel plated brass. Ideal for reducing thread size between conduit fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Metric Thread Reducer, Conduit Thread Reducer, M20 to M12 Thread Adapter, Cable Gland Reducer
Technical Specifications
- Male Thread: M20 x 1.5
- Female Thread: M12 x 1.5
- Material: Nickel-plated brass
- Component Type: Thread reducer
- Operating Temperature: Approximately -40°C to +100°C
- Finish: Nickel plated
- Sealing: Suitable for use with an appropriate thread seal where required
- Dimensions (H x L x W): 9mm x 22mm x 22mm
- Weight: 0.1 kg
Key Features
- Reduces an M20 threaded entry to an M12 female thread
- Nickel-plated brass construction for corrosion resistance and mechanical durability
- Metric-to-metric thread conversion for conduit and cable-entry systems
- Compact design suited to confined installation spaces
- Suitable for industrial, commercial and electrical enclosure applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician or technician where the reducer forms part of an electrical conduit or cable-entry installation. Ensure the complete installation complies with applicable wiring and enclosure requirements.
Applications
- Adapting M20 conduit or cable-entry fittings to M12 threaded components
- Electrical enclosures and control panels
- Flexible conduit and cable protection systems
- Industrial machinery and automation equipment
- Commercial electrical and instrumentation installations
Standards & Compliance
- AS/NZS 61386.1:2015 may apply when the reducer is used as part of a conduit system for cable management; product-specific Australian certification was not verified.
- AS/NZS 3000 applies to the overall electrical installation where applicable; this passive reducer is not itself electrical equipment.
Environmental Benefits
- Nickel-plated brass is durable and recyclable at end of service life
- Long service life can reduce replacement frequency and associated material waste
- Passive component requires no electrical power during operation
Warranty Information
ABB Australia standard sale terms generally provide a 12-month defects warranty, subject to the applicable terms, correct handling and installation, and Australian Consumer Law rights. A product-specific Adaptaflex warranty period was not identified.
Available Now
Available through Aspen Pumps, Adaptaflex/ABB channels and authorised Australian electrical distributors.
