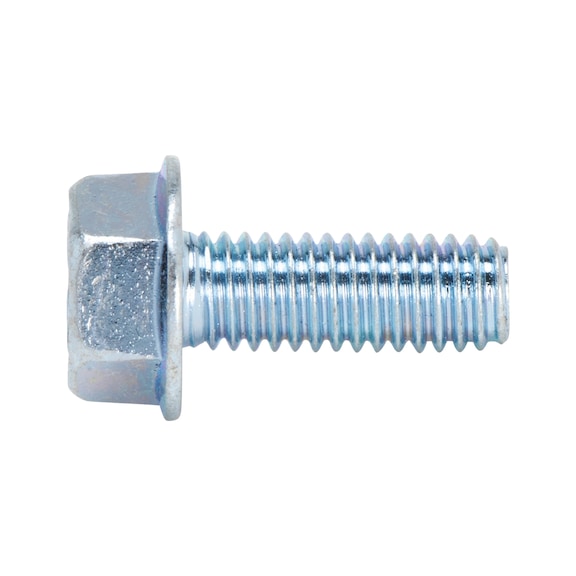

Thread-Rolling Screw M10 | 30mm Length | Zinc Plated with Blue Passivation | @Pack of 100 | by Wurth
Thread-rolling screws M10 are designed for forming nut threads in cast blind holes and sheet metal parts. Made from case-hardened, galvanised steel with a zinc-plated finish, these screws ensure high clamping force and load capacity. Ideal for industrial and mechanical assembly, they feature a self-locking design that reduces loosening, making them perfect for reliable fastening in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thread-Rolling Screw M10 | 30mm Length | Zinc Plated with Blue Passivation | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 401911030
Alternatively Known As: Thread forming screw, thread rolling bolt, self-forming screw, hex head thread rolling screw, DIN 7500 screw
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 30 mm
- Collar diameter: 22.1 mm
- Head height: 7.20 mm
- External drive: WS17 hexagon
- Guideline hole diameter: 9.40 mm
- Standards: DIN 7500
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: Hexagon head
- Drive type: Hexagon
- Collar/flange: Yes
- Dimensions (H x L x W): 7mm x 30mm x 22mm
- Weight: 0.05 kg
Key Features
- DIN 7500-1 compliant hexagon head with collar
- Case-hardened, galvanised steel with blue passivation (A2K)
- Thread-rolling design forms nut thread without cutting, preserving material structure
- Chip-free thread formation with TRILOBULAR screw shape
- Low rolling torque with large thread flank overlap
- High clamping force and load capacity
- Strain-hardened counter thread for greater load capacity
- Play-free and self-locking thread seating reduces screw loosening
- Protection against loss due to formed standard metric thread
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct thread forming and torque application.
Applications
- Forming nut threads in cast blind holes
- Rim holes and drilled, lasered, and punched sheet metal parts
- Industrial and mechanical assembly requiring strong, self-locking screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chip-free thread formation reduces material waste
- Long-lasting corrosion resistance extends product life
- Strain-hardening process enhances durability, reducing replacement frequency
Warranty Information
Wurth offers standard manufacturer warranty covering defects in material and workmanship.
Available Now
Wurth Thread-Rolling Screws M10 x 30mm are available for immediate purchase, ideal for industrial and mechanical assembly applications requiring durable and reliable fastening.
