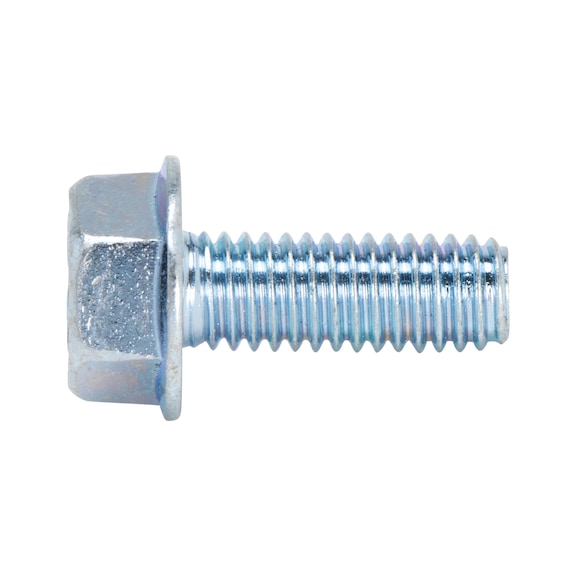

Thread-Rolling Screw M10 | Hexagon Head with Collar | Zinc Plated | @Pack of 100 | by Wurth
Thread-rolling screws M10 are designed for forming nut threads in cast blind holes and sheet metal parts. Made from case-hardened, galvanised steel with a hexagon head and collar, these screws provide high clamping force and load capacity. Ideal for industrial applications, they ensure secure fastening with reduced material waste and enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thread-Rolling Screw M10 | Hexagon Head with Collar | Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 401911040
Alternatively Known As: Thread forming screw, thread rolling bolt, self-forming screw, hex head thread rolling screw, zinc plated thread screw
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 40 mm
- Collar diameter: 22.1 mm
- Head height: 7.2 mm
- External drive: WS17
- Guideline hole diameter: 9.40 mm
- Standards: DIN 7500
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Hexagon head
- Drive type: Hexagon
- Collar/flange: Yes
- Dimensions (H x L x W): 7mm x 40mm x 22mm
- Weight: 0.05 kg
Key Features
- DIN 7500-1 compliant hexagon head with collar
- Case-hardened, galvanised steel with blue passivation (A2K)
- Thread-rolling screws form nut threads without interrupting material structure
- Chip-free thread formation with TRILOBULAR shape
- Low rolling torque and high clamping force
- Strain-hardened counter thread for greater load capacity
- Play-free and self-locking thread seating reduces screw loosening
- Protection against loss due to formed thread matching standard metric thread
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper thread forming and secure fastening.
Applications
- Forming nut threads in cast blind holes
- Rim holes and drilled, lasered, and punched sheet metal parts
- Applications requiring high clamping force and load capacity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chip-free thread formation reduces material waste
- Long-lasting corrosion resistance extends product life
- Strain-hardening process enhances durability, reducing replacement frequency
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
Wurth Thread-Rolling Screws M10 x 40mm are available for immediate purchase, ideal for industrial and manufacturing applications requiring durable and reliable fastening solutions.
