Thread Rolling Screw Taptite 2000 | Flat Head & Hexalobular Drive | Case-Hardened Steel | @Pack of 50 | by Wurth
The GEFU thread rolling screw with Taptite 2000 thread is designed for forming nut threads in various materials, featuring a flat head and hexalobular TX8 drive. Ideal for mechanical fastening applications, this case-hardened steel screw ensures high clamping force and load-bearing capacity, making it perfect for professionals seeking reliable and durable solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thread Rolling Screw Taptite 2000 | Flat Head & Hexalobular Drive | Case-Hardened Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 209712504
Alternatively Known As: Taptite 2000 screw, thread rolling screw, self-tapping screw, hexalobular drive screw, TX8 thread forming screw

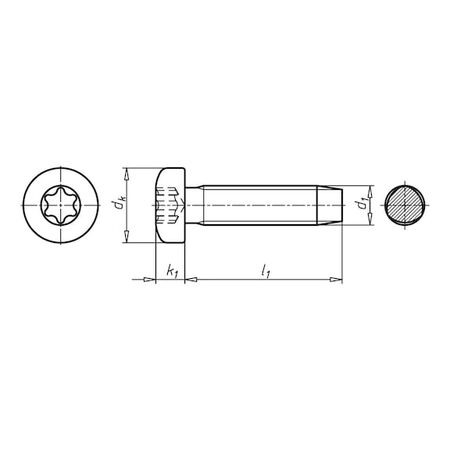

Technical Specifications
- Thread type x nominal diameter: M2.5
- Length: 4 mm
- Head diameter: 5 mm
- Head height: 2.1 mm
- Head type: Flat head
- Material: Steel, case-hardened
- Surface: Zinc plated with blue passivation (A2K) and slide coating
- Thread type: Metric thread
- Internal drive: TX8 hexalobular
- Guideline hole diameter: 2.3 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.1mm x 4mm x 5mm
- Weight: 0.005 kg
Key Features
- Mechanical and functional properties in accordance with DIN 7500-1 (shape PE)
- Case-hardened zinc-plated steel with blue passivation (A2K) and slide coating
- Head dimensions according to ISO 14583
- Self-tapping screws form a nut thread without interrupting material structure
- Non-cutting thread formation displaces and strain-hardens material
- Low rolling torques with greater thread flank overlap
- Trilobular core diameter shape combined with radius profile of thread flanks
- High clamping force and load-bearing capacity
- Play-free and self-locking thread seating
- Formed thread corresponds to standard metric thread
- RoHS-compliant
Professional Installation Requirements
- Installation by trained personnel or professionals recommended to ensure proper thread forming and torque application.
Applications
- Used for forming nut threads in cast blind holes, rim holes, and drilled, lasered, or punched sheet metal parts
- Ideal for mechanical fastening where strain-hardened, self-locking threads are required
- Suitable for applications requiring high clamping force and load-bearing capacity
Standards & Compliance
- Complies with DIN 7500-1 standard for thread rolling screws
Environmental Benefits
- Eliminates need for thread cutting, reducing manufacturing waste
- Durable coating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase. Ideal for mechanical fastening applications requiring strong, self-locking threads in metal components.
