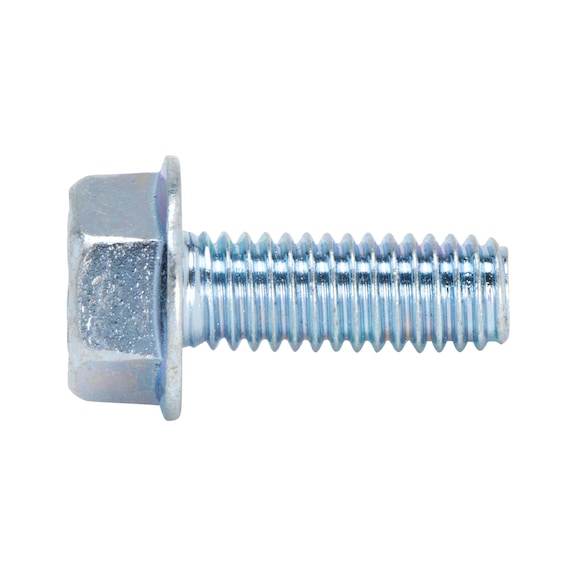

Thread Rolling Screw Taptite 2000 | M4x10 | Hexagon Head with Collar | Zinc Plated | @Pack of 100 | by Wurth
The GEFU thread rolling screw with Taptite 2000 thread is designed for secure fastening in various metal parts without cutting threads. With a robust M4x10 size and a hexagon head with collar, this screw is ideal for applications requiring high load-bearing capacity. Made from case-hardened steel and zinc plated for corrosion resistance, it ensures durability and reliability in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thread Rolling Screw Taptite 2000 | M4x10 | Hexagon Head with Collar | Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20973410
Alternatively Known As: Taptite 2000 screw, thread rolling screw, self-tapping hex screw, DIN 7500-1 screw, collar hex screw
Technical Specifications
- Thread type x nominal diameter: M4
- Length: 10 mm
- Collar diameter: 8.45 mm
- Head height: 4 mm
- External drive: WS7 hexagon
- Guideline hole diameter: 3.7 mm
- Standard: DIN 7500-1
- Material: Steel, case-hardened
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: Hexagon head
- Drive type: Hexagon
- Thread type: Metric thread
- Collar/flange: Yes
- Dimensions (H x L x W): 4mm x 10mm x 8.45mm
- Weight: 0.01 kg
Key Features
- Self-tapping screws form a nut thread in various metal parts without interrupting material structure
- Case-hardened steel with zinc plating and blue passivation for corrosion resistance
- TRILOBULAR core diameter shape combined with radius profile of thread flanks for high clamping force
- Low rolling torques with high thread flank overlap
- Play-free and self-locking thread seating reduces likelihood of screw loosening
- Eliminates need for thread cutting, saving costs and preserving material integrity
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper torque and secure fastening.
Applications
- Used for fastening in cast blind holes, rim holes, and drilled, lasered, and punched sheet metal parts
- Ideal for applications requiring high load-bearing capacity and secure fastening without thread cutting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Eliminates need for thread cutting, reducing waste and energy consumption in manufacturing
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth GEFU thread rolling screw with Taptite 2000 thread hexagon head M4x10 is available for immediate purchase, ideal for industrial and manufacturing fastening applications.
