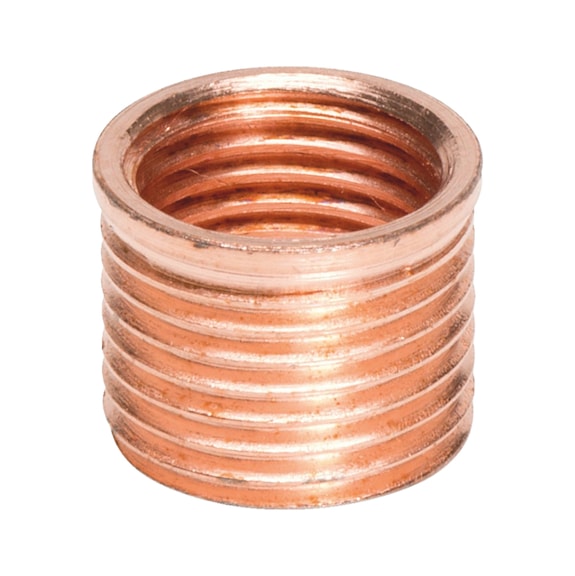

Threaded Bushing for Car Spark Plug Repair | M14 x 1.25 Thread | Copper Plated Steel | by Wurth
The Threaded Bushing for car spark plug repair is designed for M14 x 1.25 threads, making it ideal for restoring damaged spark plug threads in engine cylinder heads. Crafted from copper-plated steel, this bushing ensures reliable sealing and precise positioning, perfect for automotive repair shops and mechanical workshops. Its media-tight and self-locking design allows for effective repairs even in thin-walled materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Bushing for Car Spark Plug Repair | M14 x 1.25 Thread | Copper Plated Steel | by Wurth
Brand: Wurth
SKU: 662141250
Alternatively Known As: Spark Plug Thread Repair Insert, Thread Repair Bushing, TIME-SERT Threaded Insert
Technical Specifications
- Thread type x nominal diameter x pitch (My): M14 x 1.25
- Length (L): 7 mm
- Design: For flat seal
- Surface: Copper plated
- Material: Steel
- Dimensions (H x L x W): 7mm x 7mm x 7mm
- Weight: 0.05 kg
Key Features
- Suitable for flat or conical sealing seats
- Reliable processing even with weak walls
- Can be used in thin-walled materials
- Media-tight and self-locking
- Precise positioning in the workpiece
Professional Installation Requirements
- Professional installation by a qualified automotive technician is recommended to ensure proper thread repair and sealing.
Applications
- Automotive: Repairing and restoring spark plug threads in engine cylinder heads
- Mechanical workshops: Thread repair in thin-walled and weak materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extends the life of engine components by enabling thread repair instead of replacement
- Reduces waste by avoiding the need for new cylinder heads
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Threaded Bushing TIME-SERT® for repairing car spark plugs is available now for immediate purchase. Ideal for automotive repair shops and mechanical workshops.
