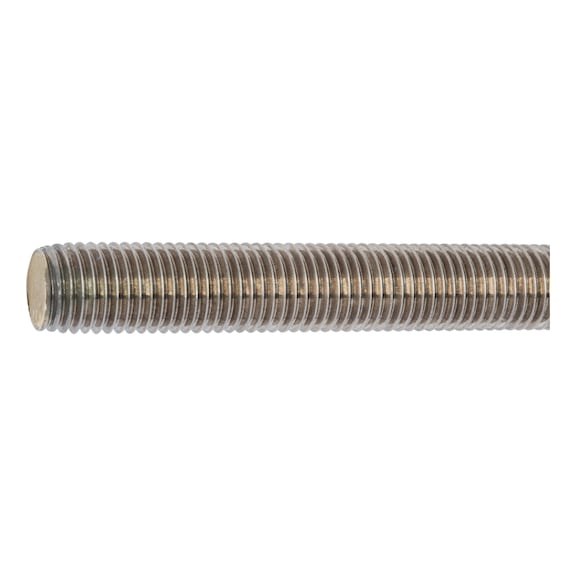

Threaded Rod DIN 976 1 Shape A | A4 Stainless Steel | M4 Diameter | 1000mm Length | by Wurth
The Threaded Rod DIN 976 1 Shape A is crafted from A4 stainless steel, featuring a nominal M4 diameter and a length of 1000 mm. Ideal for construction, mechanical, and industrial applications, this rod offers excellent corrosion resistance and is RoHS-compliant, ensuring durability in harsh environments. Its plain surface finish and identifiable flame red color make it a reliable choice for structural fastening and assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Rod DIN 976 1 Shape A | A4 Stainless Steel | M4 Diameter | 1000mm Length | by Wurth
Brand: Wurth
SKU: 9534
Alternatively Known As: Stainless Steel Threaded Rod M4, DIN 976 Threaded Rod, A4-70 Threaded Stud, Metric Thread Rod, Stainless Steel Stud Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 1000 mm
- Standards: DIN 976-1
- Material: Stainless steel A4
- Property class: 70
- Surface: Plain
- Form: A
- Thread type: Metric thread
- Identification colour: Flame red RAL 3000
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 1000mm x 4mm
- Weight: 0.3 kg
Key Features
- Made from stainless austenitic steel with strength class A4-70
- Nominal thread diameter M4 with length 1000 mm
- Identifiable on one face as steel grade A4
- Alternative identification with flame red colour (RAL 3000) on one end
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure correct torque and secure fastening according to engineering specifications.
Applications
- Construction: Structural fastening and assembly
- Mechanical: Machinery and equipment assembly
- Industrial: General purpose fastening in corrosive environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency and waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Threaded Rod DIN 976 1 Shape A Stainless Steel A4-70 M4x1000 is available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
