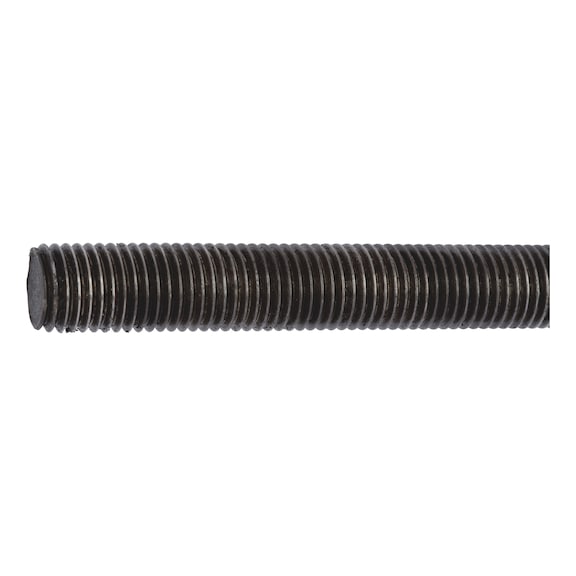

Threaded Rod DIN 976-1 Shape A | M10 Metric Thread | Steel 10.9 | Plain Surface | by Wurth
The Threaded Rod DIN 976-1 Shape A is designed with a standard M10 metric thread and crafted from high tensile steel 10.9, making it ideal for construction, industrial, and automotive applications. With a plain surface finish and RoHS compliance, this durable rod ensures secure fastening and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Rod DIN 976-1 Shape A | M10 Metric Thread | Steel 10.9 | Plain Surface | by Wurth
Brand: Wurth
SKU: 959000010
Alternatively Known As: Threaded stud, Metric threaded rod, Steel threaded bar, High tensile threaded rod
Technical Specifications

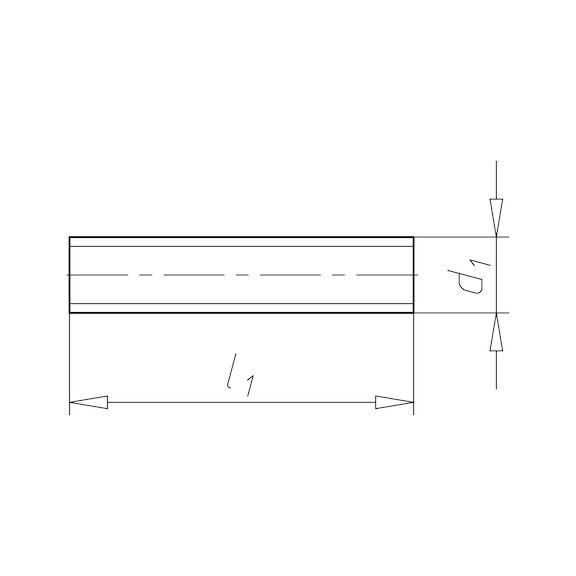

- Thread type x nominal diameter (d1): M10
- Length (l1): 1000 mm
- Standards: DIN 976-1
- Material: Steel
- Property class: 10.9
- Surface: Plain
- Form: A
- Thread type: Metric thread
- Identification colour: Oyster white RAL 1013
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.8 kg
Key Features
- Threaded rod with standard metric ISO thread
- Steel grade 10.9 for high tensile strength
- Plain surface finish
- Form A shape according to DIN 976-1
- Identification colour Oyster White RAL 1013 as strength class marking
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Construction: Structural fastening and support
- Industrial: Machinery assembly and maintenance
- Automotive: Vehicle frame and component fastening
- General: Any application requiring high-strength threaded rods
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Threaded Rod DIN 976-1 Shape A Steel 10.9 Plain M10 x 1000mm is available now for immediate purchase. Ideal for construction, industrial, and automotive fastening applications.
