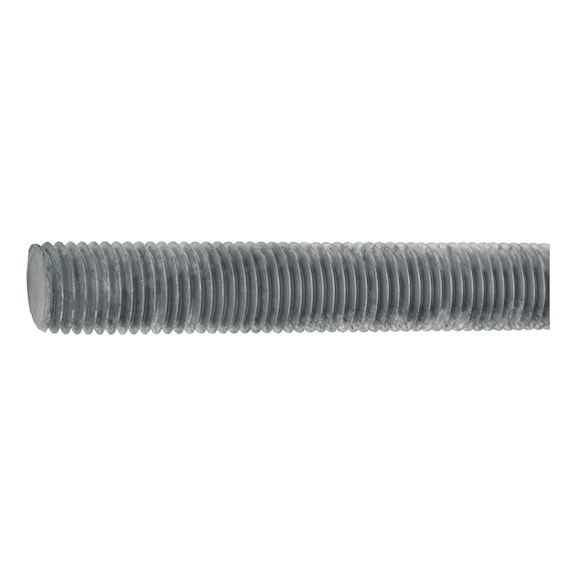

Threaded Rod DIN 976-1 Shape A | M20 Metric Thread | Steel 8.8U | Hot-Dip Galvanised | by Wurth
The Threaded Rod DIN 976-1 Shape A is designed for robust structural fastening with a standard M20 metric thread. Made from high-strength steel 8.8U and hot-dip galvanised for superior corrosion resistance, this rod is perfect for construction and industrial applications. Ideal for qualified personnel, it ensures compliance with safety standards and enhances durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Rod DIN 976-1 Shape A | M20 Metric Thread | Steel 8.8U | Hot-Dip Galvanised | by Wurth
Brand: Wurth
SKU: 9597020
Alternatively Known As: Galvanised Threaded Rod, Hot-Dip Galvanised Threaded Bar, Metric Thread Rod M20, Steel Threaded Rod 8.8U
Technical Specifications
- Thread type x nominal diameter: M20
- Length: 1000 mm
- Standard: DIN 976-1
- Material: Steel
- Property class: 8.8U
- Surface finish: Hot dip galvanized
- Form: A
- Thread type: Metric thread
- Identification colour: Traffic yellow RAL 1023
- RoHS-compliant: Yes
- Dimensions (H x L x W): 20mm x 1000mm x 20mm
- Weight: 1.5 kg
Key Features
- Manufactured with thread undersize in tolerance class 6AZ before surface protection.
- ISO-compliant after hot-dip galvanisation ensuring compatibility with hot-dip galvanised nuts with thread tolerance 6H.
- Hot-dip galvanised surface for enhanced corrosion resistance.
- Made from high-strength steel property class 8.8U.
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fastening and safety standards.
Applications
- Construction: Structural fastening and anchoring
- Industrial: Machinery assembly and maintenance
- General: Mechanical fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation extends product life reducing replacement frequency and waste.
- RoHS-compliant ensuring reduced hazardous substances.
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Threaded Rod DIN 976-1 Shape A, Steel 8.8U, Hot-Dip Galvanised is available for immediate purchase, ideal for construction and industrial fastening applications.
