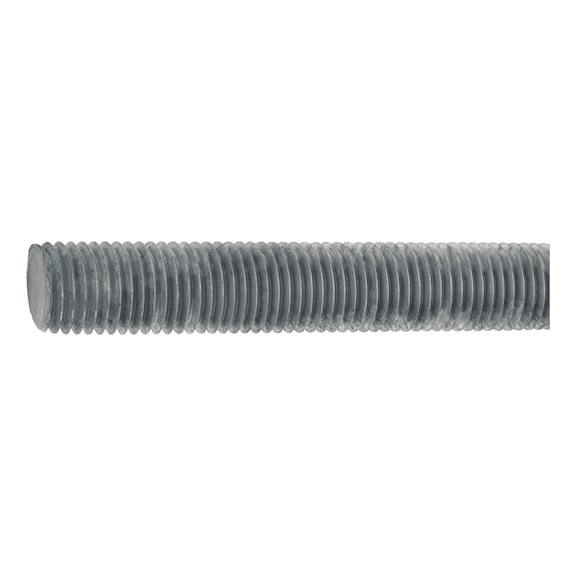

Threaded Rod M20 | Steel 10.9U | Hot-Dip Galvanised | Test Certificate DIN 976-1 | by Wurth
The M20 Threaded Rod is crafted from high-strength steel 10.9U and features a hot-dip galvanised finish, ensuring exceptional corrosion resistance. Ideal for construction, industrial, and infrastructure applications, this rod is supplied with an optional test certificate for compliance with DIN 976-1 standards. Perfect for structural fastening and anchoring, it guarantees durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Rod M20 | Steel 10.9U | Hot-Dip Galvanised | Test Certificate DIN 976-1 | by Wurth
Brand: Wurth
SKU: 959000320
Alternatively Known As: Galvanised Threaded Rod, Steel Threaded Rod M20, Hot-Dip Zinc Plated Threaded Rod, DIN 976 Threaded Rod
Technical Specifications
- Thread type x nominal diameter: M20
- Length: 1000 mm
- Standards: DIN 976-1
- Material: Steel
- Property class: 10.9U
- Surface: Hot dip galvanized
- Form: A
- Thread type: Metric thread
- Identification colour: Oyster white RAL 1013
- RoHS-compliant: Yes
- Dimensions (H x L x W): 20mm x 1000mm x 20mm
- Weight: 1.6 kg
Key Features
- Manufactured with an undersized thread in tolerance class 6AZ before surface protection.
- ISO-compliant after hot-dip zinc-plating ensuring compatibility with hot-dip zinc-plated nuts with thread tolerance 6H.
- Supplied with optional Acceptance test certificate 3.1 in accordance with EN 10204.
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper torque and secure fastening in structural applications.
Applications
- Construction: Structural fastening and anchoring
- Industrial: Machinery assembly and maintenance
- Infrastructure: Bridges, tunnels, and heavy-duty installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanising provides long-lasting corrosion resistance, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Threaded Rod M20 Steel 10.9U Hot-Dip Galvanised DIN 976-1 is available now for immediate purchase. Ideal for construction, industrial, and infrastructure fastening applications.
