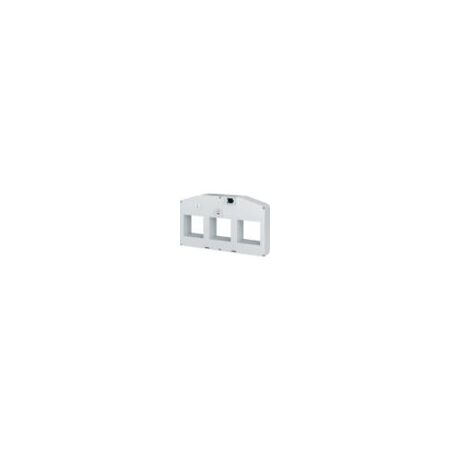

Three Phase Current Transformer 800A | Plug and Play | Snap Mounting & Shock Protection by Eaton
The Eaton EMC3P-P250-800 is a three-phase current transformer with a nominal current rating of 800A and accuracy class 1 for precise measurements. Ideal for electrical distribution systems and energy monitoring, it features a convenient plug-in connection and easy snap mounting for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three Phase Current Transformer 800A | Plug and Play | Snap Mounting & Shock Protection by Eaton
Brand: Eaton
SKU: EMC3P-P250-800
Alternatively Known As: Three Phase Current Transformer, 3-Phase CT 800A, Plug and Play Current Transformer
Technical Specifications
- Nominal current: 800 A
- Number of primary inputs: 3
- Accuracy class (ratio): 1
- Mounting method: Snap mounting
- Secondary connection: Plug-in connection
- Fitted with shock protection copper rail
- Opening width: 54 mm
- Opening height: 50 mm
- Opening diameter: 50 mm
- Secondary rated apparent power: 0 VA
- Secondary current input: 0 A
- Dimensions (H x L x W): 124mm x 54mm x 215mm
- Weight: 1 kg
Key Features
- Three phase plug'n'play current transformer
- Nominal current rating of 800 A
- Accuracy class 1 for precise current measurement
- Snap mounting method for easy installation
- Fitted with shock protection copper rail
- Plug-in secondary connection for convenience
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical distribution systems requiring current measurement and monitoring
- Industrial and commercial electrical installations
- Power management and energy monitoring setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Enables efficient energy monitoring to optimize power usage
Warranty Information
Standard Eaton warranty applies, typically 1 year against manufacturing defects.
Available Now
The Eaton EMC3P-P250-800 Three Phase Plug'n'Play Current Transformer 800 A is available now for immediate purchase. Ideal for electrical distribution and energy monitoring applications.
