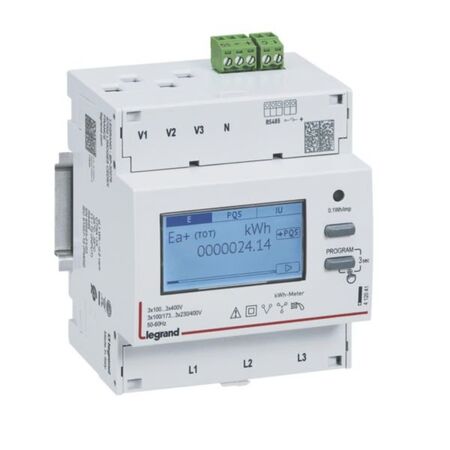

Three Phase Energy Meter | 5A Current | RS485 Interface | 2-Tariff Measurement | @Each of 1 | by Legrand
The Three Phase Energy Meter is designed for precise energy monitoring with a 5A nominal current and RS485 communication interface. Ideal for industrial and commercial applications, it features a backlit digital display and supports bidirectional measurement for effective energy management. With its IP54 protection rating, this meter ensures durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Electronic meter
- Nominal current (In): 5 A
- Maximum current (Imax): 6 A
- Nominal voltage (N-L): 197-265 V
- Nominal voltage (L-L): 340-460 V
- Frequency range: 47-63 Hz
- Accuracy class: B
- Pole type: Three conductor/four conductor
- Energy type: Effective and reactive power
- Tariff type: Two-tariff
- Tariff control: External
- Display: Digital backlit
- Mounting: DIN-rail adaptor
- Width: 4 modular spacings (71.2 mm)
- Depth: 66 mm
- Height: 92.4 mm
- Interface: RS-485
- Degree of protection: IP54
- Operating temperature: -25 to 55 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal
- Terminal capacity: 1-16 mm²
- Halogen free: Yes
- Dimensions (H x L x W): 92mm x 66mm x 71mm
- Weight: 0.3 kg
Key Features
- Connection with CT up to 5A
- Modbus RS485 communication interface
- Double tariff with pulse input for additional meter data collection (gas, water, electrical)
- Bidirectional measurement of production and consumption energies
- Backlit digital display with easy data reading and parameter preview
- User code protected settings mode
- Measures run hours on each tariff
- Local phase shift measurement display
- IP54 degree of protection
- DIN-rail mounting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial and commercial electrical energy monitoring
- Power measurement in switchboards and power cabinets
- Energy management systems requiring bidirectional measurement
- Two-tariff energy consumption tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate energy consumption monitoring to optimize energy use and reduce waste
- Supports bidirectional measurement facilitating renewable energy production tracking
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand EMDX3 Three Phase Energy Meter 5A 230/400V RS485 2-Tariff is available for immediate purchase, ideal for industrial and commercial energy monitoring applications.
