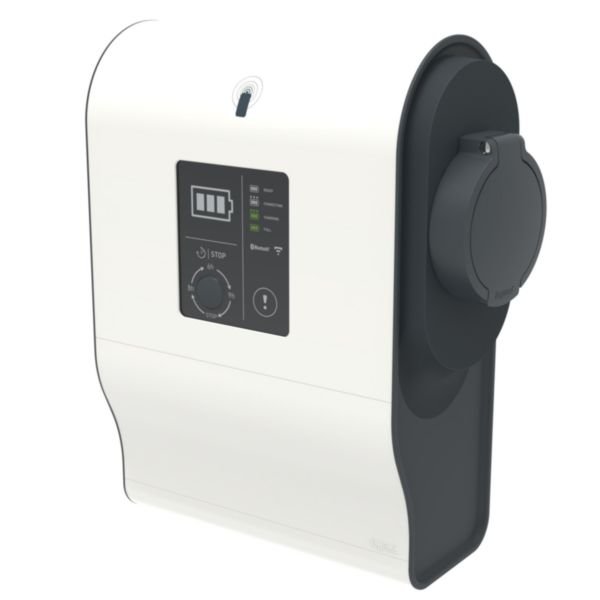

Three-Phase Green'up Premium EV Charging Station | 22kW Power | IP44 Rated | RFID Access Control | @EA of 1 | by Legrand
The Three-Phase Green'up Premium EV Charging Station delivers 22kW of power, making it perfect for residential and commercial electric vehicle charging. With features like RFID access control and IP44 protection, it ensures safe and efficient charging in various environments. Ideal for public and private parking areas, this station supports remote management and adjustable power settings for optimized energy use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Phase Green'up Premium EV Charging Station | 22kW Power | IP44 Rated | RFID Access Control | @EA of 1 | by Legrand
Brand: Legrand
SKU: 059007
Alternatively Known As: Legrand Green'up Premium EV Charger, 22kW EV Charging Station, Three-phase EV Charger, Mode 3 EV Charger
Technical Specifications
- Nominal connection power: 22 kW
- Number of charging units: 1
- Max power per charging point: 22 kW
- Installation side connection: 3-phase
- Degree of protection: IP44
- Impact strength: IK08
- Housing material: Plastic
- Operating temperature: -25°C to 50°C
- Nominal voltage: 380-415 V
- Communication: Bluetooth, Modbus, Network, WiFi, OCPP 1.6J
- Access control: RFID reader for 13.56 MHz badges
- Deferred start charging: 3, 6, or 9 hours
- Programmable via web software
- Compatible with Google Play Store and App Store applications
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 8 kg
Key Features
- Three-phase charging station with 22 kW nominal power
- Integrated communication kit and RFID reader for multi-user access
- Remote control via IP or WiFi network using smartphone, tablet, or PC
- Embedded 6mA DC residual current protection allowing use with upstream RCD type A or F
- Adjustable power output settings (11/15/18/22 kW or 16/20/25/32 A)
- Deferred start charging options (3/6/9 hours) via front panel
- Supports OCPP 1.6J protocol for operator supervision
- IP44 rated for protection against water splashes and dust
- IK08 impact resistance rating
- Plastic housing material
- Operating temperature range from -25°C to 50°C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing greenhouse gas emissions
- Energy-efficient charging with adjustable power settings to optimize energy use
- Remote management reduces unnecessary energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Three-phase Plastic Green'up Premium EV Charging Station 22kW 32A is available for immediate purchase, ideal for residential, commercial, and public electric vehicle charging applications.
