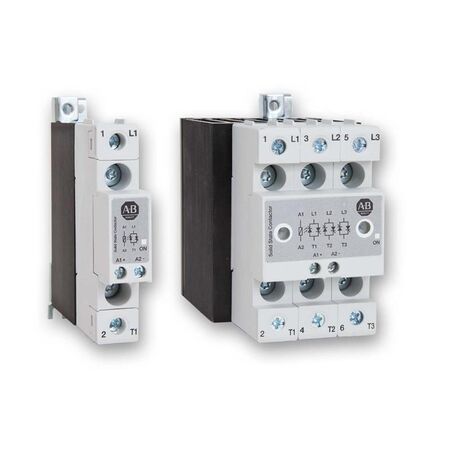

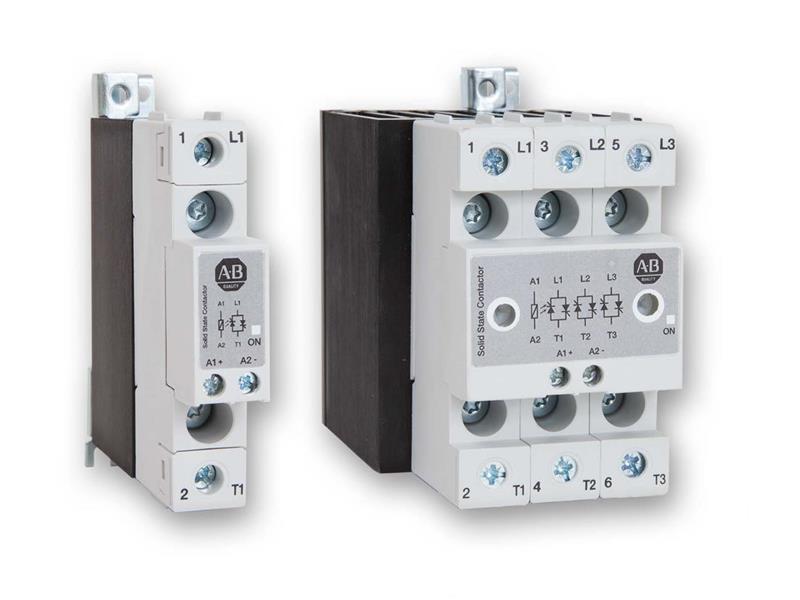

Product Name/Title: Allen-Bradley 156C3P20NAB Three Phase Solid State Contactor
Brand: Allen-Bradley
SKU: 156C3P20NAB
Alternatively Known As: Solid State Contactor 156C3P20NAB, Allen-Bradley SSR Contactor, Three Phase SSR Contactor
Technical Specifications
- Current Rating: 20 Amps @ 40°C
- Voltage Rating: 240 Volts AC maximum
- Control Voltage AC: 20 - 275 Volts
- Control Voltage DC: 24 - 190 Volts
- Number of Poles: 3 (three switched poles)
- Type: Solid State Contactor
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.5 kg
Key Features
- Three switched poles for three-phase applications
- 20 Amps current rating at 40°C
- Maximum voltage rating of 240 Volts AC
- AC control voltage range: 20 - 275 Volts
- DC control voltage range: 24 - 190 Volts
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial motor control
- Automation systems
- HVAC systems
- Manufacturing equipment requiring solid state switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Solid state design reduces mechanical wear and extends product life
- Energy efficient switching reduces power loss during operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 156C3P20NAB Three Phase Solid State Contactor is available for immediate purchase, ideal for industrial and automation control applications.
