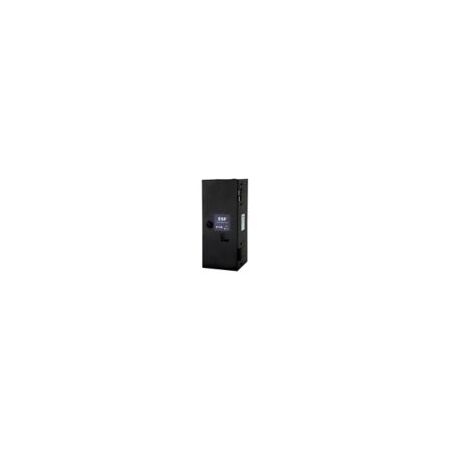

Three Phase Surge Filter 63A | 100kA Imax L-N | IP42 Enclosed Design by Eaton
Three phase surge filter with a 63A rating and 100kA maximum discharge current—ideal for industrial and commercial electrical systems. Built for reliable surge protection, featuring an enclosed design with IP42 rating for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three Phase Surge Filter 63A | 100kA Imax L-N | IP42 Enclosed Design by Eaton
Brand: Eaton
SKU: ESF633-TN-E
Alternatively Known As: Three Phase Surge Protector, 3 Phase Surge Filter, 63A Surge Suppressor, Electrical Surge Protection Device
Technical Specifications
- Product Name: Eaton Surge protection
- Catalog Number: ESF633-TN-E
- Fault current: 50 kA
- Operating temperature range: -10 °C to 65 °C
- Connection: Three-phase
- Phase: Three-phase
- Class: Class 2 Cat B Class 2 Cat C
- Degree of Protection: IP42
- Mounting Method: Surface Wall mounting
- Configuration: Diverter-filter-diverter
- Maximum continuous operating voltage: 320 V L-N
- Maximum discharge current 8x20µs (Imax): 100 kA
- Nominal discharge current 8x20µs (In): 50 kA
- Certifications: CE, AS1768-2007 Cat B,C,D,E, ANSI/IEEE C62.41 Cat B,C,D,E, IES610006-1,2,3,4, AS3100, IEC61643-1:2005, AS3000
- Dimensions (H x L x W): 520mm x 220mm x 400mm
- Weight: 10 kg
Key Features
- Three-phase connection with 63A rating
- Maximum discharge current (Imax) L-N: 100kA
- Maximum discharge current (Imax) N-E: 50kA
- Enclosed design with IP42 degree of protection
- Surface wall mounting for easy installation
- Diverter-filter-diverter configuration for enhanced surge protection
- Operating temperature range from -10°C to 65°C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Secondary point protection in electrical installations
- Three-phase electrical systems requiring surge protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste and extending equipment lifespan
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 3 Phase Surge Filter 63A 100kA Imax L-N enclosed is available now for immediate purchase. Ideal for industrial and commercial electrical surge protection applications.
