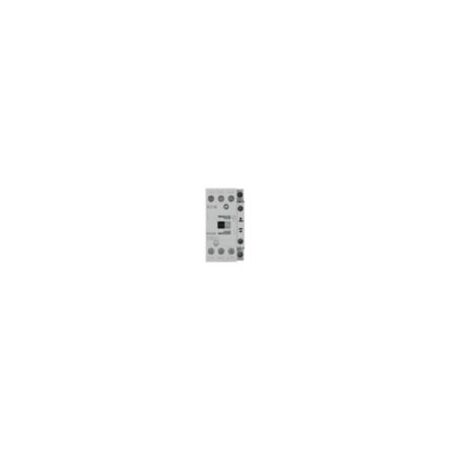

Three-Pole DC Contactor | 25A Rated Current | 11kW Power | 24V DC by Eaton
Three-pole DC contactor with a rated operational current of 25A and power capacity of 11kW—ideal for motor control and industrial automation. Built for efficiency and longevity, it features a mechanical lifespan of 10 million operations and secure screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Pole DC Contactor | 25A Rated Current | 11kW Power | 24V DC by Eaton
Brand: Eaton
SKU: Y7-277178
Alternatively Known As: Eaton DILM Contactor, DILM25-01 Contactor, 3 Pole DC Contactor, Motor Contactor 24V DC, Eaton Moeller DILM Relay
Technical Specifications
- Rated operational current (Ie) at AC-3, 380/400 V: 25 A
- Rated operational power at AC-3, 380/400 V: 11 kW
- Rated control supply voltage (Us) at DC: 24-27 V
- Number of poles: Three-pole
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations (DC operated)
- Operating frequency: 5000 mechanical operations/hour (DC operated)
- Protection: Finger and back-of-hand proof according to EN 50274
- Terminal capacity (flexible with ferrule): up to 16 mm² for main cables
- Power consumption (pick-up) at DC: 12 W
- Power consumption (sealing) at DC: 0.9 W
- Shock resistance: Complies with IEC/EN 60068-2-27
- Duty factor: 100%
- Connection type: Screw terminals
- Dimensions (H x L x W): 85mm x 97mm x 45mm
- Weight: 0.534 kg
Key Features
- Three-pole contactor suitable for DC operation
- Rated operational power up to 11 kW at 380/400 V AC
- Screw terminal connections for secure wiring
- Mechanical lifespan of 10,000,000 operations (DC operated)
- Protection against direct contact from front (finger and back-of-hand proof)
- Rated impulse withstand voltage of 8000 V AC
- Suitable for AC-1, AC-3, AC-4 utilization categories
- Shock resistance compliant with IEC/EN 60068-2-27
- Power consumption of 12 W (pick-up) and 0.9 W (sealing) at DC
- Rated control supply voltage 24-27 V DC (RDC 24)
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Motor control and switching applications
- Industrial automation systems
- Contactors for motors including efficiency class IE3 motors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM25-01(RDC24) contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
