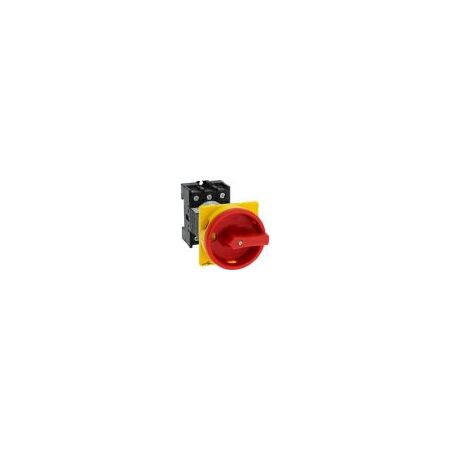

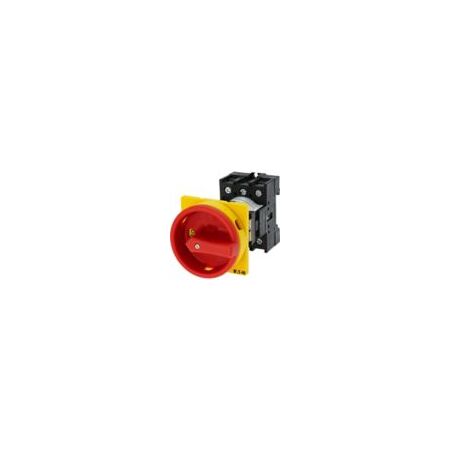

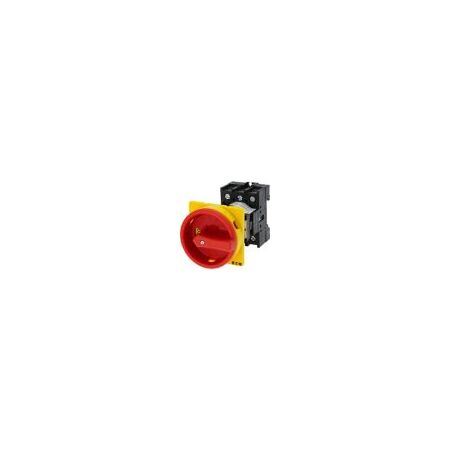

Three-Pole Main Switch 25 A | IP65 Protection | Lockable Emergency Off | Eaton
This three-pole main switch with a 25 A rating and IP65 protection is ideal for industrial and commercial electrical installations. Built for safety and reliability, it features a lockable emergency off function and a mechanical lifespan of 300,000 operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Pole Main Switch 25 A | IP65 Protection | Lockable Emergency Off | Eaton
Brand: Eaton
SKU: Y7-55335
Alternatively Known As: Eaton P1 Main Switch, Eaton 3-Pole Main Switch, Eaton Emergency Off Switch, Eaton Motor Disconnect Switch
Technical Specifications
- Rated operational current: 25 A
- Rated breaking capacity: 190 A at 220/230 V, 150 A at 400/415 V
- Rated operational power: up to 13 kW depending on voltage and application
- Rated impulse withstand voltage: 6000 V AC
- Degree of protection: IP65 (front), NEMA 12
- Mechanical lifespan: 300,000 operations
- Operating frequency: 1200 operations per hour
- Shock resistance: 15 g mechanical
- Terminal capacity: 1 x (1-4) mm² flexible with ferrules, up to 2 x (1.5-6) mm² solid or stranded
- Mounting method: Rear mounting
- Locking facility: Lockable in Off position
- Ambient operating temperature: -25 °C to 50 °C
- Dimensions (H x L x W): 65mm x 131mm x 65mm
- Weight: 0.22 kg
Key Features
- Three-pole main switch with 25 A rating

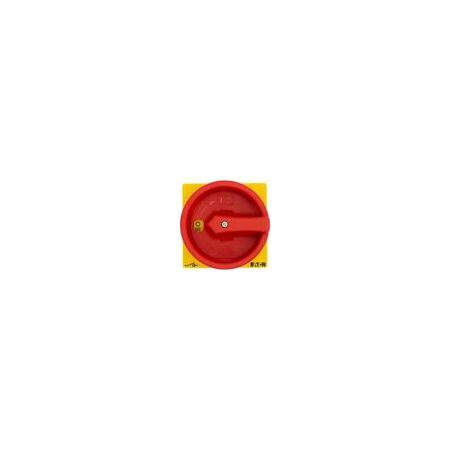

- Emergency switching off function with lockable red rotary handle and yellow locking ring
- Rear mounting with IP65 front side protection and NEMA 12 degree of protection
- Rated short-time withstand current of 640 A for 1 second
- Mechanical lifespan of 300,000 operations and operating frequency of 1200 operations per hour
- Suitable for branch circuits and motor disconnect applications
- Lockable in the 0 (Off) position for safety
- Shock resistance of 15 g according to IEC/EN 60068-2-27
- Wide ambient operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and correct mounting.
Applications
- Industrial and commercial electrical installations
- Motor disconnect and branch circuit isolation
- Emergency stop and maintenance switch applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Supports safe and efficient electrical isolation to prevent energy loss
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms and conditions.
Available Now
The Eaton Moeller P1-25/V/SVB main switch is available for immediate purchase, ideal for industrial and commercial electrical isolation and emergency stop applications.
