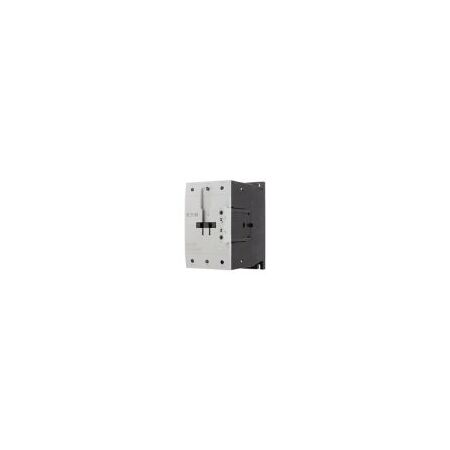

Three-Pole Motor Contactor | 45 kW Power | 130 A Current | 24V DC Coil by Eaton
Three-pole motor contactor with 45 kW power and 130 A current—ideal for industrial automation and motor control applications. Built for reliable DC operation, it features a high mechanical lifespan of 10 million operations and secure screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Pole Motor Contactor | 45 kW Power | 130 A Current | 24V DC Coil by Eaton
Brand: Eaton
SKU: Y7-239510
Alternatively Known As: Eaton DILM95 Contactor, DILM95 RDC24 Contactor, 3 Pole Motor Contactor, DC Coil Contactor 24V, Industrial Motor Contactor
Technical Specifications
- Number of poles: Three-pole
- Rated operational voltage (Ue) max: 690 V AC
- Rated operational power at AC-3, 400 V: 45 kW
- Rated operational current (Ie) at AC-1, 400 V: 130 A
- Rated operational current (Ie) at AC-3, 400 V: 95 A
- Rated operational current (Ie) at DC-1, 60 V: 110 A
- Rated insulation voltage (Ui): 690 V
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Power consumption (pick-up) at DC: 90 W
- Power consumption (sealing) at DC: 1.5 W
- Mechanical lifespan: 10,000,000 operations (DC operated)
- Operating frequency: 3600 mechanical operations per hour (DC operated)
- Terminal capacity: up to 2 x (16 - 70) mm² for main cables
- Stripping length: 24 mm for main cables, 10 mm for control circuit cables
- Tightening torque: 14 Nm for main cables, 1.2 Nm for control circuit cables
- Switching time (make contacts, closing delay): max 45 ms
- Switching time (make contacts, opening delay): max 34 ms
- Duty factor: 100%
- Ambient operating temperature: -25 °C to 60 °C
- Ambient storage temperature: -40 °C to 80 °C
- Protection: Finger and back-of-hand proof according to EN 50274
- Dimensions (H x L x W): 170mm x 160mm x 90mm
- Weight: 2.32 kg
Key Features
- Three-pole contactor suitable for 380-400 V AC operation
- Rated operational power up to 45 kW at 400 V AC
- DC operation with 24-27 V DC coil voltage (RDC 24)
- Screw terminal connections for secure wiring
- Suppressor circuit integrated in actuating electronics
- High mechanical lifespan of 10,000,000 operations (DC operated)
- Protection against direct contact from front (finger and back-of-hand proof)
- Rated impulse withstand voltage of 8000 V AC
- Suitable for motors with efficiency class IE3
- Rated operational current up to 130 A (AC-1) and 95 A (AC-3)
- Shock resistance compliant with IEC/EN 60068-2-27
- Ambient operating temperature range from -25 °C to 60 °C
- Complies with multiple international certifications including CSA, UL, IEC/EN standards
Professional Installation Requirements
- Installation by a qualified electrician or professional is required to ensure compliance with safety standards and proper operation.
Applications
- Motor control and switching applications
- Industrial automation systems
- AC and DC motor starters
- Contactors for motors with efficiency class IE3
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency motor compatibility reduces energy consumption
- Long mechanical lifespan reduces waste and replacement frequency
- Complies with international standards ensuring safe and environmentally responsible operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM95(RDC24) Contactor is available for immediate purchase. Ideal for industrial motor control and automation applications requiring reliable DC coil operation.
