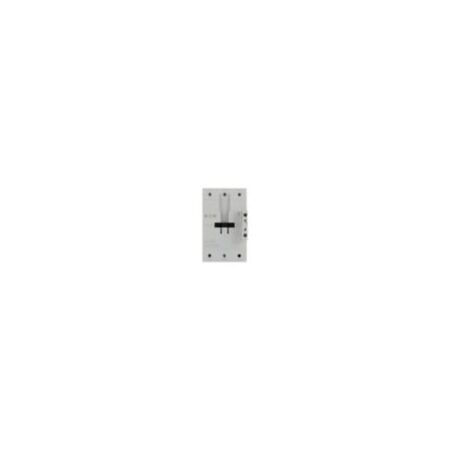

Three-Pole Motor Contactor 95A | 45kW Power Rating | Screw Terminal Connections | -25°C to 60°C by Eaton
Three-pole motor contactor with a rated operational current of 95A and power rating of 45kW—ideal for industrial motor control and automation. Built for efficiency, with screw terminal connections for secure wiring and a high mechanical lifespan of 10 million operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Pole Motor Contactor 95A | 45kW Power Rating | Screw Terminal Connections | -25°C to 60°C by Eaton
Brand: Eaton
SKU: Y7-239469
Alternatively Known As: Eaton DILM95 Contactor, 3-Pole Motor Contactor, Eaton Moeller DILM Contactor, Industrial Motor Contactor
Technical Specifications
- Rated operational current (Ie) at AC-3, 240 V: 95 A
- Rated operational power at AC-3, 380/400 V, 50 Hz: 45 kW
- Number of poles: Three-pole
- Operating frequency: 3600 mechanical operations per hour
- Rated insulation voltage (Ui): 690 V
- Rated breaking capacity at 380/400 V: 950 A
- Protection: Finger and back-of-hand proof according to EN 50274
- Shock resistance: 7 g mechanical according to IEC/EN 60068-2-27
- Ambient operating temperature: -25 °C to 60 °C
- Connection type: Screw terminals
- Power consumption, pick-up at 50 Hz: 310 VA
- Duty factor: 100%
- Mechanical lifespan: 10,000,000 operations
- Dimensions (H x L x W): 170mm x 160mm x 90mm
- Weight: 2.18 kg
Key Features
- Three-pole contactor suitable for motors with efficiency class IE3
- Rated operational current up to 95 A at AC-3 category
- Rated operational power up to 45 kW at 380/400 V, 50 Hz
- Screw terminal connections for secure wiring
- Protection against direct contact when actuated from front (EN 50274)
- High mechanical lifespan of 10,000,000 operations
- Shock resistance compliant with IEC/EN 60068-2-27
- Ambient operating temperature range from -25 °C to 60 °C
- Rated insulation voltage of 690 V
- Short-circuit current rating up to 10 kA
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into motor control systems.
Applications
- Motor control and switching applications
- Industrial automation systems
- AC induction motor starting, plugging, reversing, and inching
- Non-inductive or slightly inductive loads such as resistance furnaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Designed for long operational life reducing waste and replacement frequency
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM95 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
